Differentiable
agent-based epidemiology
Arnau Quera-Bofarull
How to speed-up JUNE by 10,000x
Personal update
Currently postdoc at the Large Agent Collider project.
Working on the calibration of ABMs.
PIs: Ani Calinescu, Doyne Farmer, and Michael Wooldridge,
Colaborating with Ayush Chopra (MIT)
Why is JUNE slow
Object-oriented programming
class Person:
def __init__(self, age, sex):
self.age = age
self.sex = sex
self.susceptibility = 1.0
self.infectivity = 0.0In JUNE we write:
Problems:
- Functions are called millions of times
- No vectorization
Tensorization
import torch
age = torch.tensor([10, 20, 30])
sex = torch.tensor([0, 1, 0])
susceptibility = torch.tensor([1.,1.,1.])
infectivity = torch.tensor([0.,0.,0.])Idea: Use ML frameworks (PyTorch) to code ABMs
Advantages:
- Vectorized
- Code runs on GPU, for free
Tensorization
How do we implement interactions?

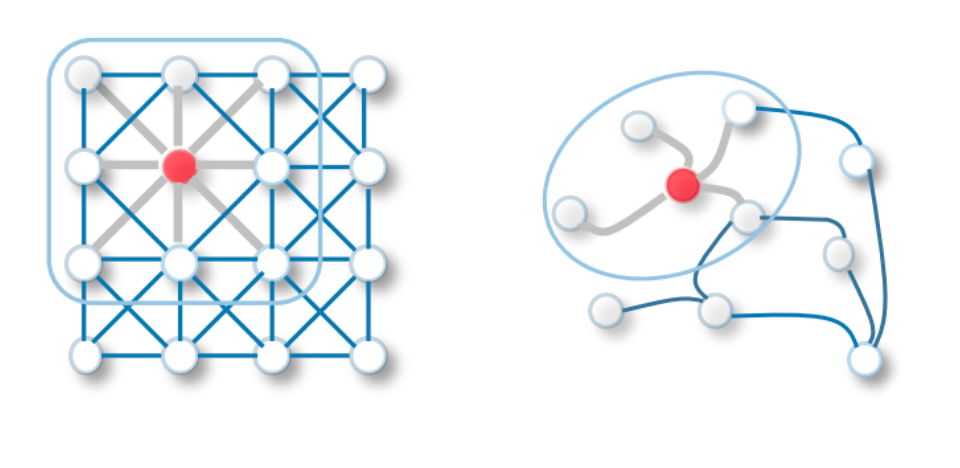

Idea: Represent JUNE as a heterogenous graph
Tensorization
Use tools for Graph Neural Networks (PyTorch Geometric)
\mathbf{m}_{j\to i} = \phi(\mathbf{x}_i, \mathbf{x}_j, \mathbf{e}_{j\to i})

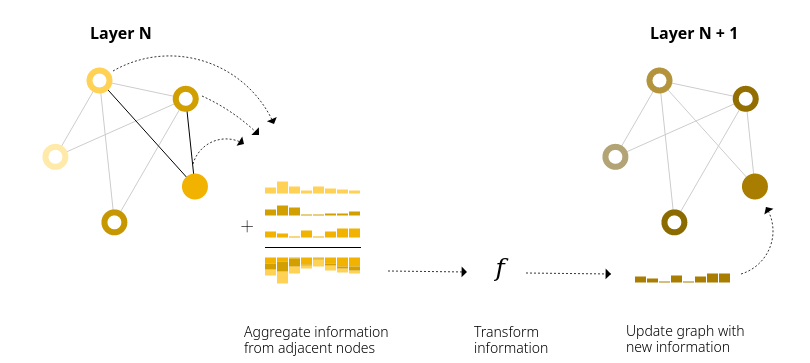

Message Passing
\bar{\mathbf{m}}_{i} = \square_{j\in N(i)} \mathbf{m}_{j\to i}
\mathbf{x}_{i}' = \gamma_x(\mathbf{x}_{i}, \bar{\mathbf{m}}_{i})
\mathbf{e}_{j\to i}^\prime = \gamma_e(\mathbf{e}_{j \to i},\mathbf{m}_{j \to i})
Node
Edge
Message
Convolution
"Average" Message
Updated node
Updated edge
Convolution
Update node function
Update edge function
i_1
i_2
i_3
I = \beta_\mathrm{household} \times \sum_j i_j
I \times s_1
I \times s_2
I \times s_3
I
I
I
JUNE interaction in a graph
JUNE
O(100) CPU hours
Torch JUNE
O(10) CPU seconds
Differentiation

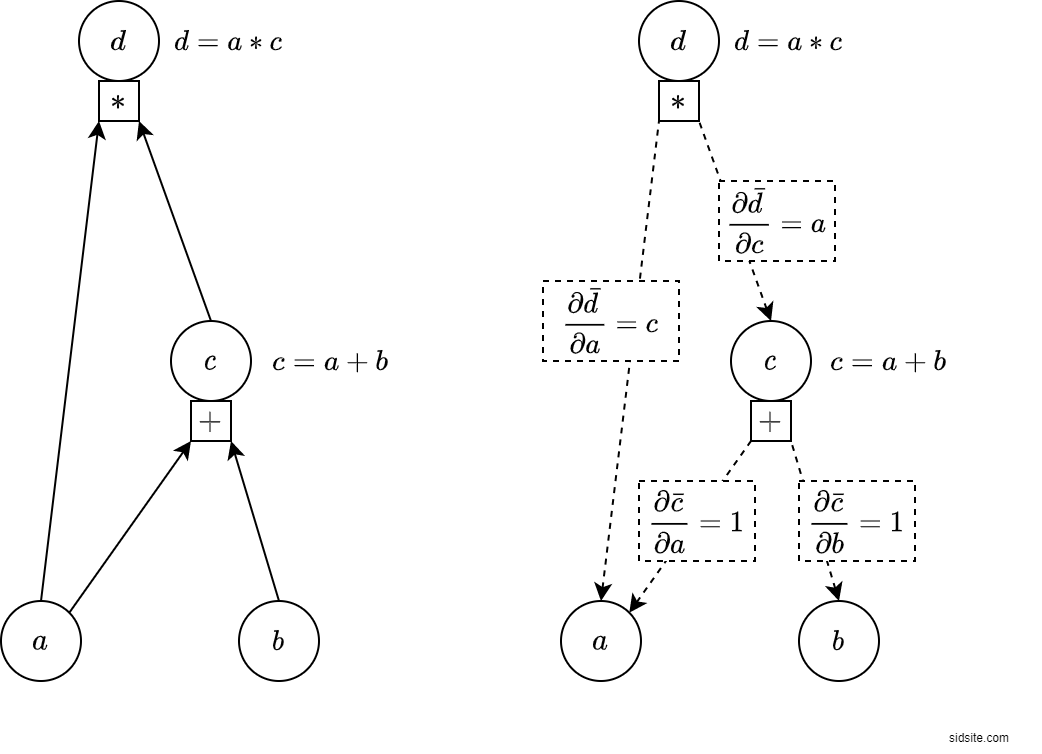

Automatic differentiation
How to efficiently and reliably calculate the derivative of a program?
PyTorch supports automatic differentiation
Automatic differentiation
Problem: ABMs have discrete behaviour,
but ML people deal with this too!

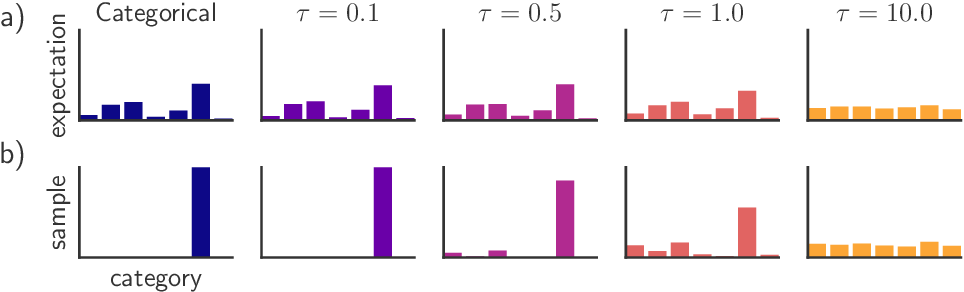

Solution: Reparametrize discrete distributions with Gumbel-Softmax trick

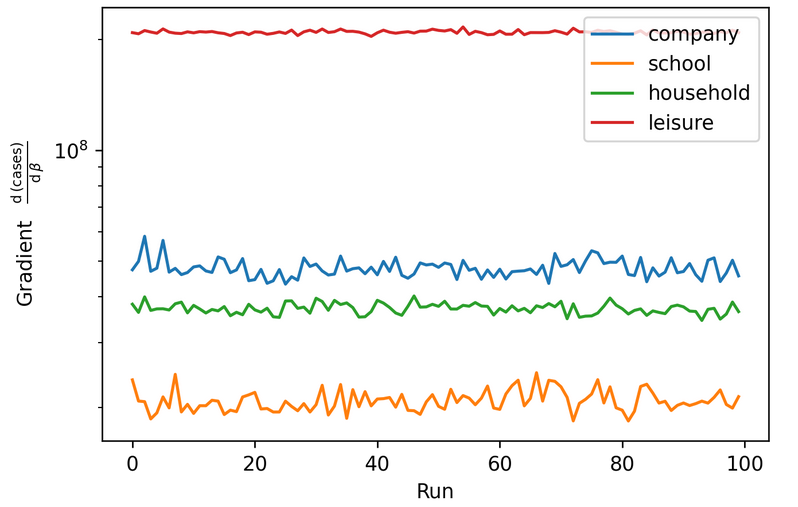

Automatic differentiation
We can now very efficiently calculate gradients of the type
\frac{\mathrm{d}(\mathrm{cases})}{\mathrm{d}(\beta)}
So we can fit the model using gradient descent!

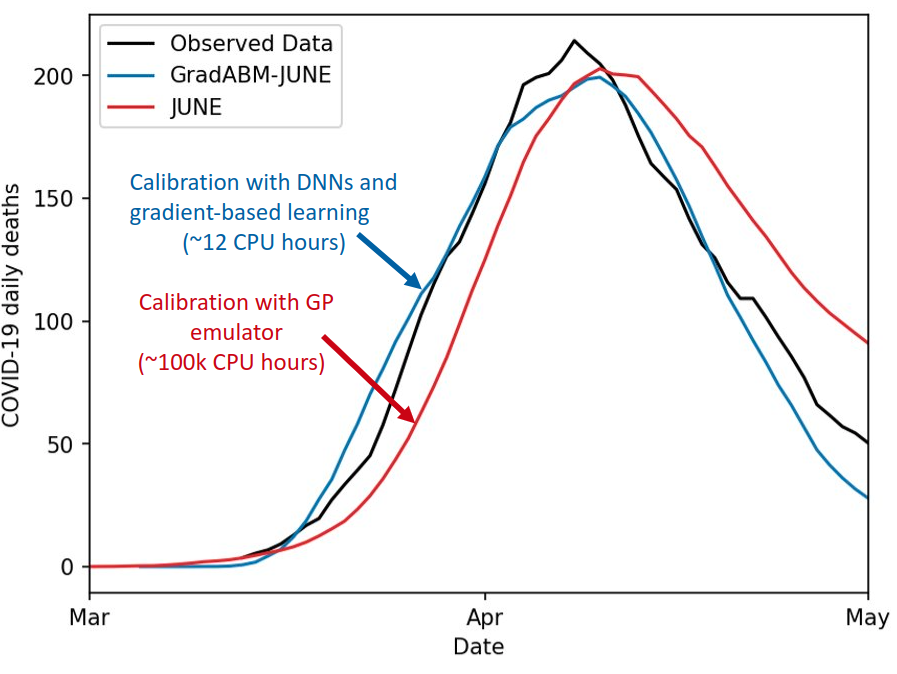

Calibration of JUNE using gradient descent
Caution:
- Not a Bayesian calibration (Work In Progress)
One-shot sensitivity analysis
Idea: Gradients give you the sensitivity
Run the simulation once, get the sensitivity for free!

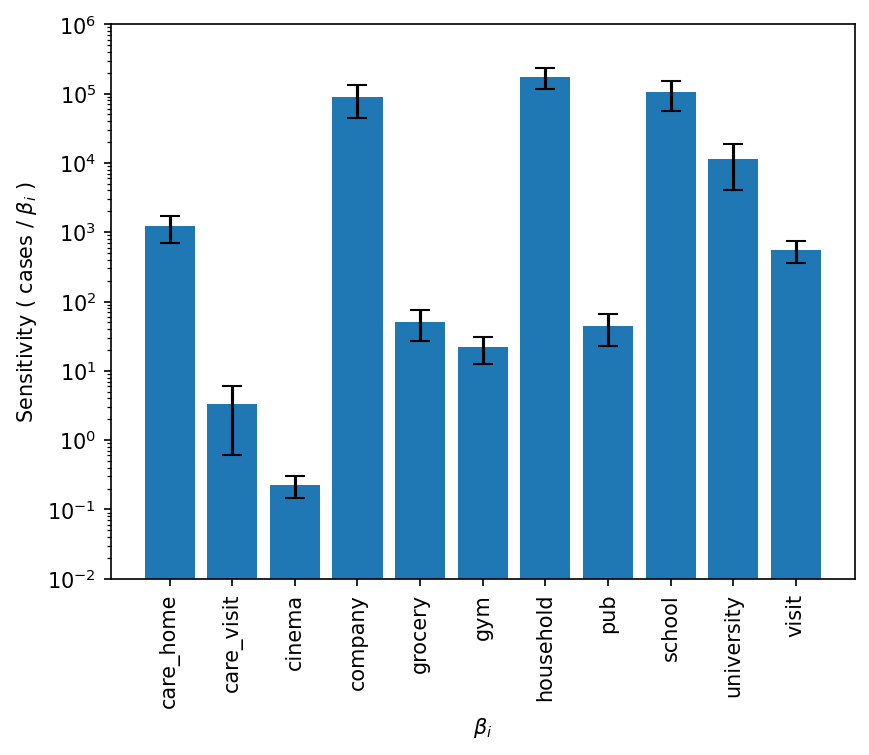

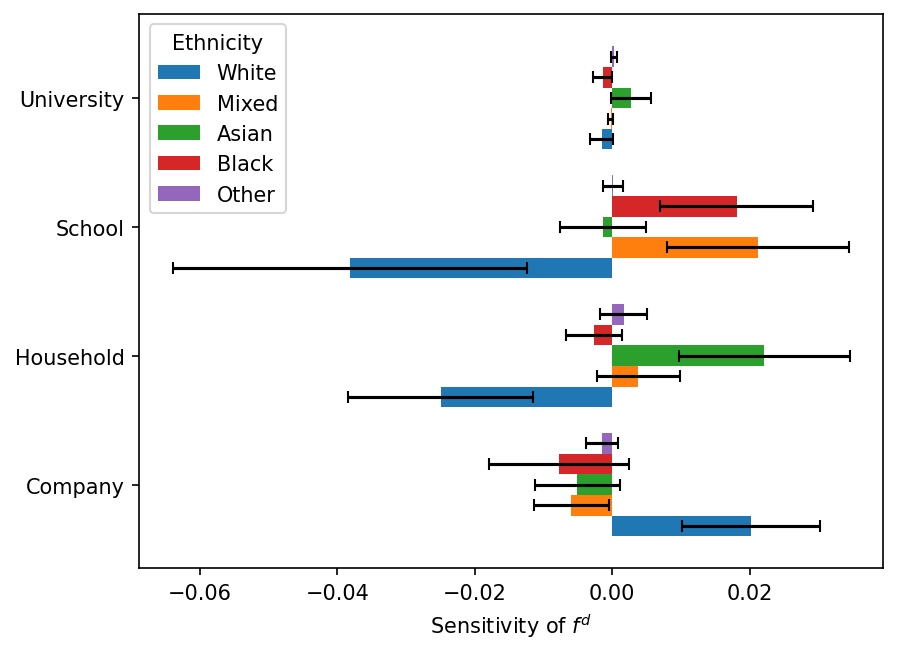

One-shot sensitivity analysis

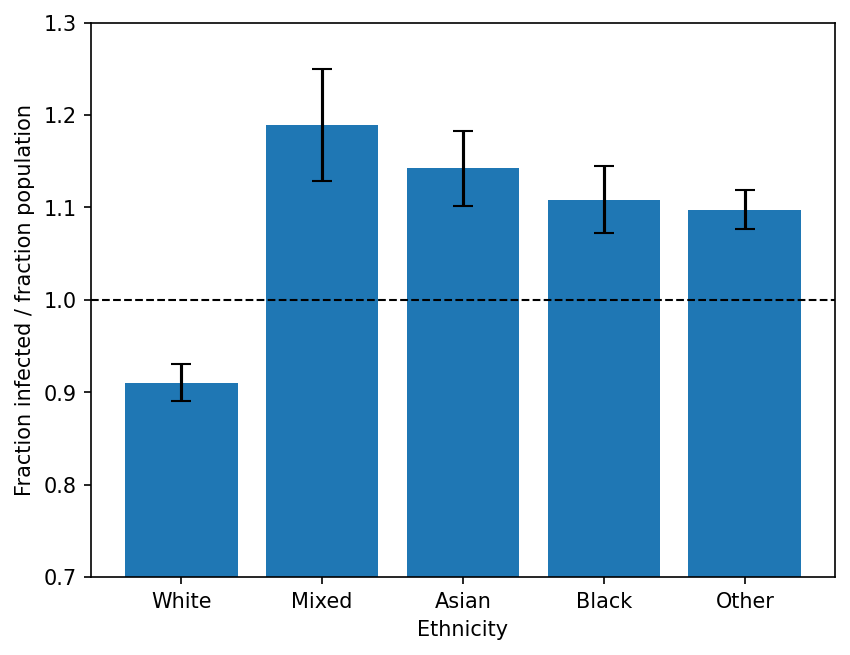

Use this to study ABM dynamics

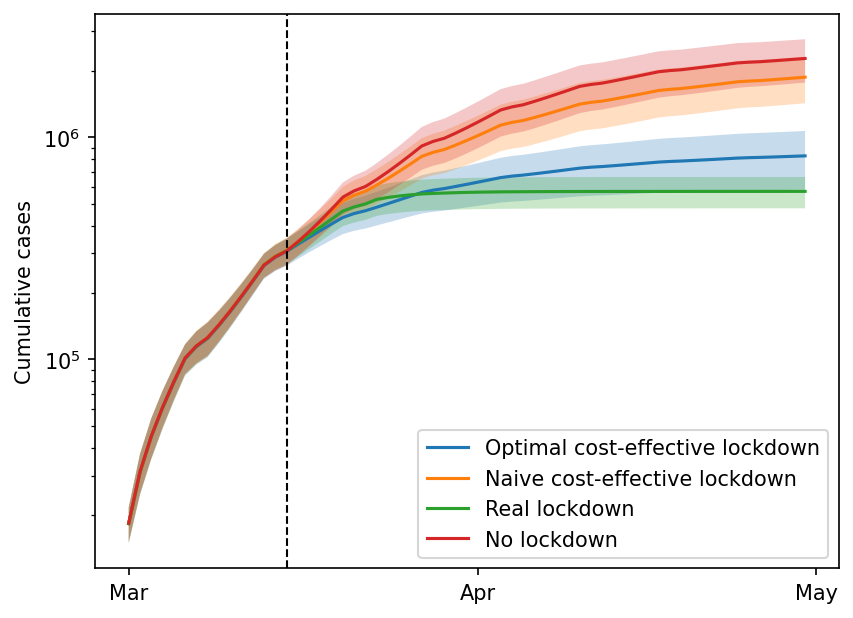

Cost-effective policy design
Gradients inform you about optimal (local) policy
Conclusions and future work
- Tensorization massively speeds up ABM simulation.
- Differentiation of ABMs possible using ML techniques.
- Gradients enable one-shot sensitivity analysis and optimal policy design.
Papers:
(Chopra et al. 2022) :
https://arxiv.org/abs/2207.09714
(Quera-Bofarull et al. 2022):
Submitted
