Introduction to AWS Cloud

VPC, EC2, S3

Learning Outcome

Earlier, we learned

Cloud provides online servers and storage

AWS provides these using EC2, S3, and VPC

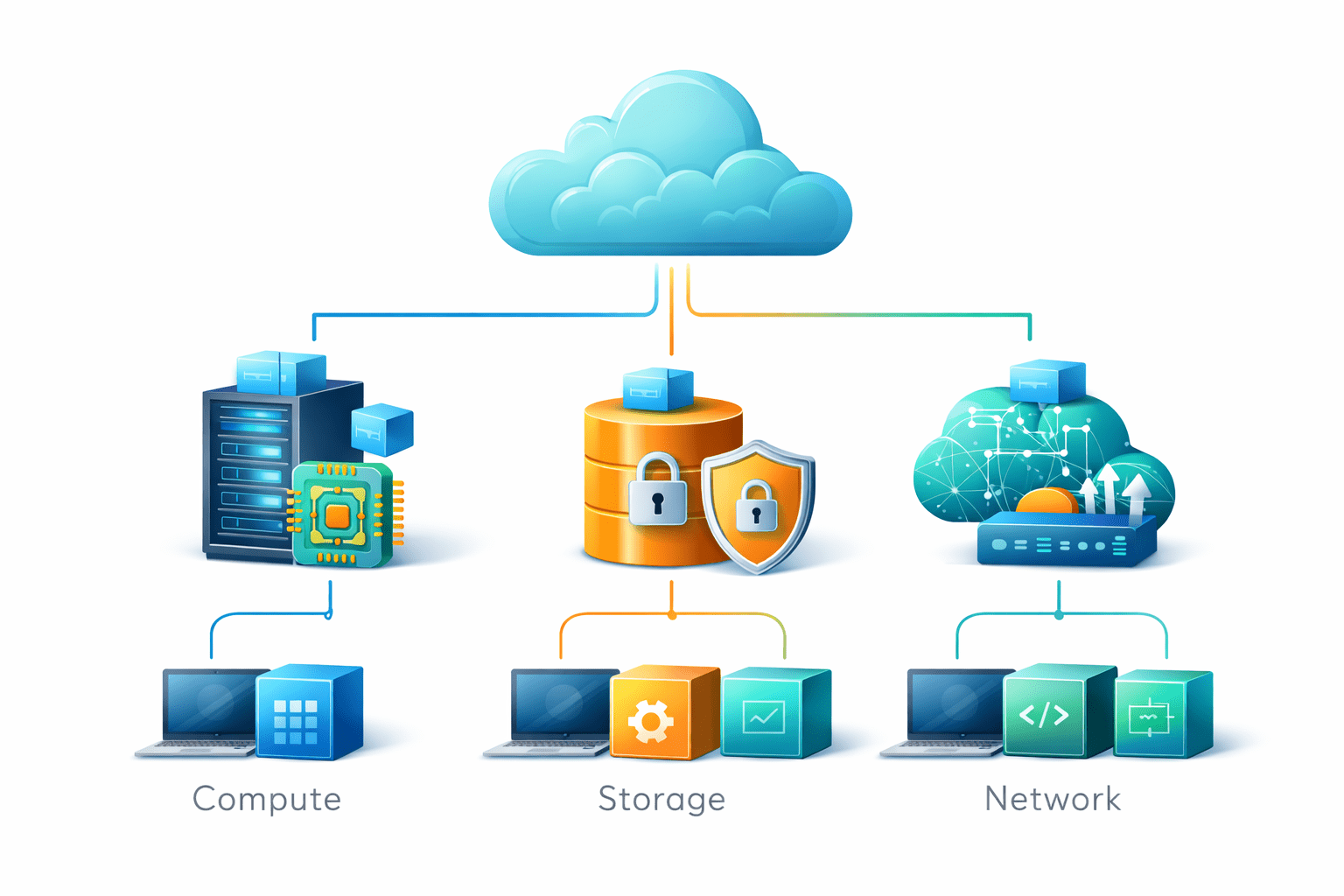

Applications need compute, storage, and network

Let's Understand

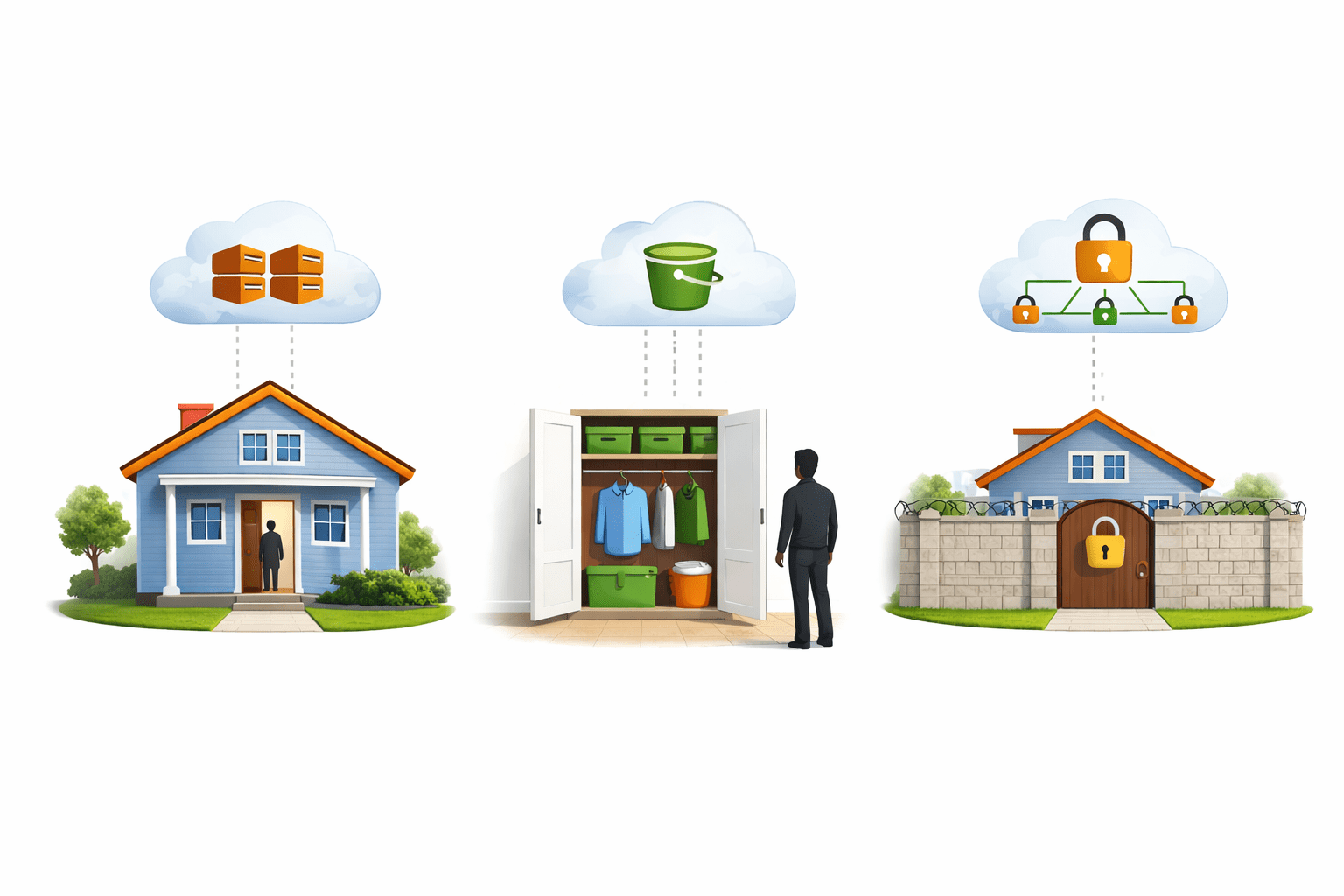

Think about a house

Place to live

Place to store things

Boundary wall

AWS works the same way using EC2, S3, and VPC

 Room

Cupboard

Protects the house

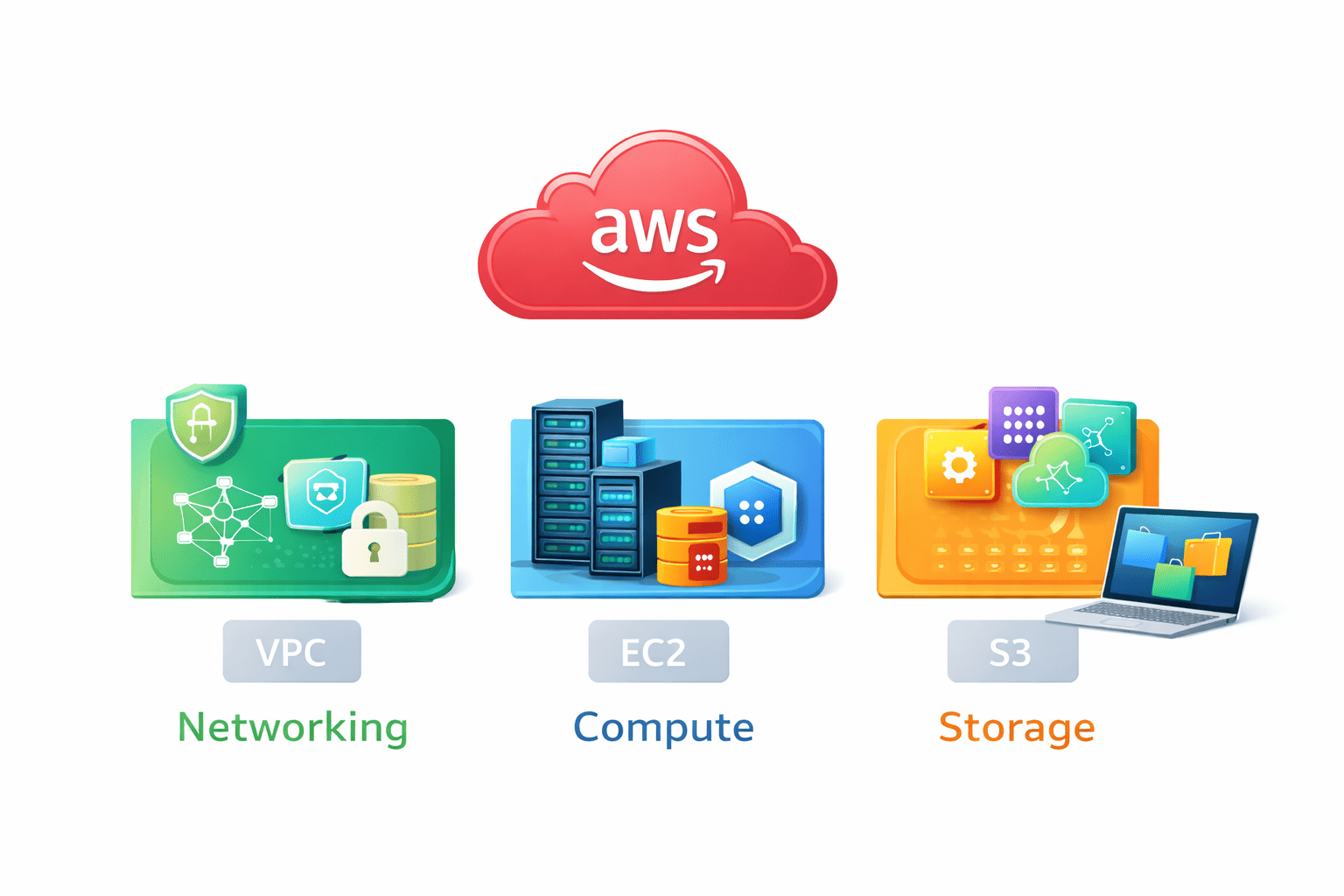

To run applications in AWS,

we need networking, servers, and storage

AWS provides these using VPC, EC2, and S3

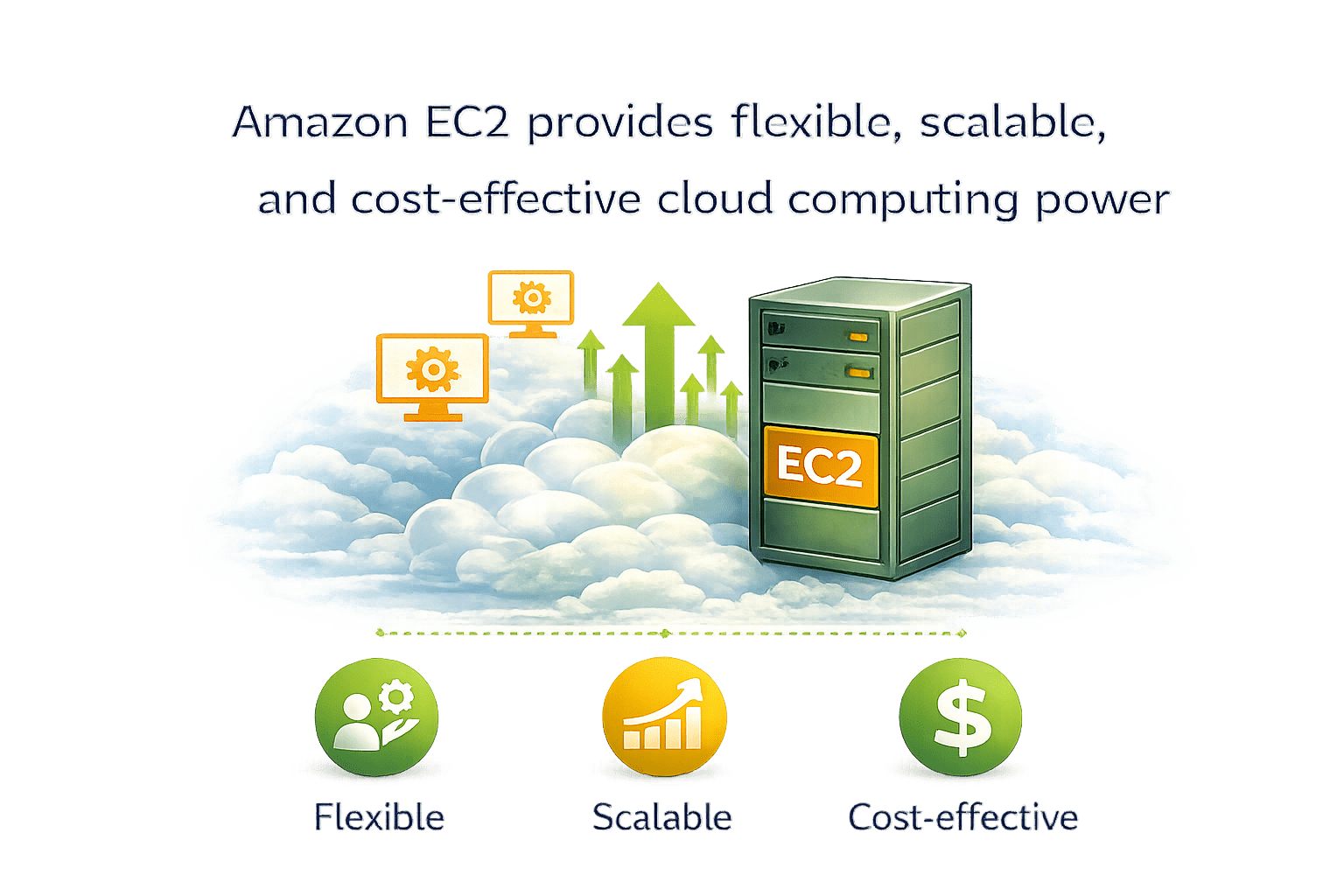

What is EC2?

Amazon EC2 (Elastic Compute Cloud) is a cloud service

that provides scalable virtual machines (instances) to run applications

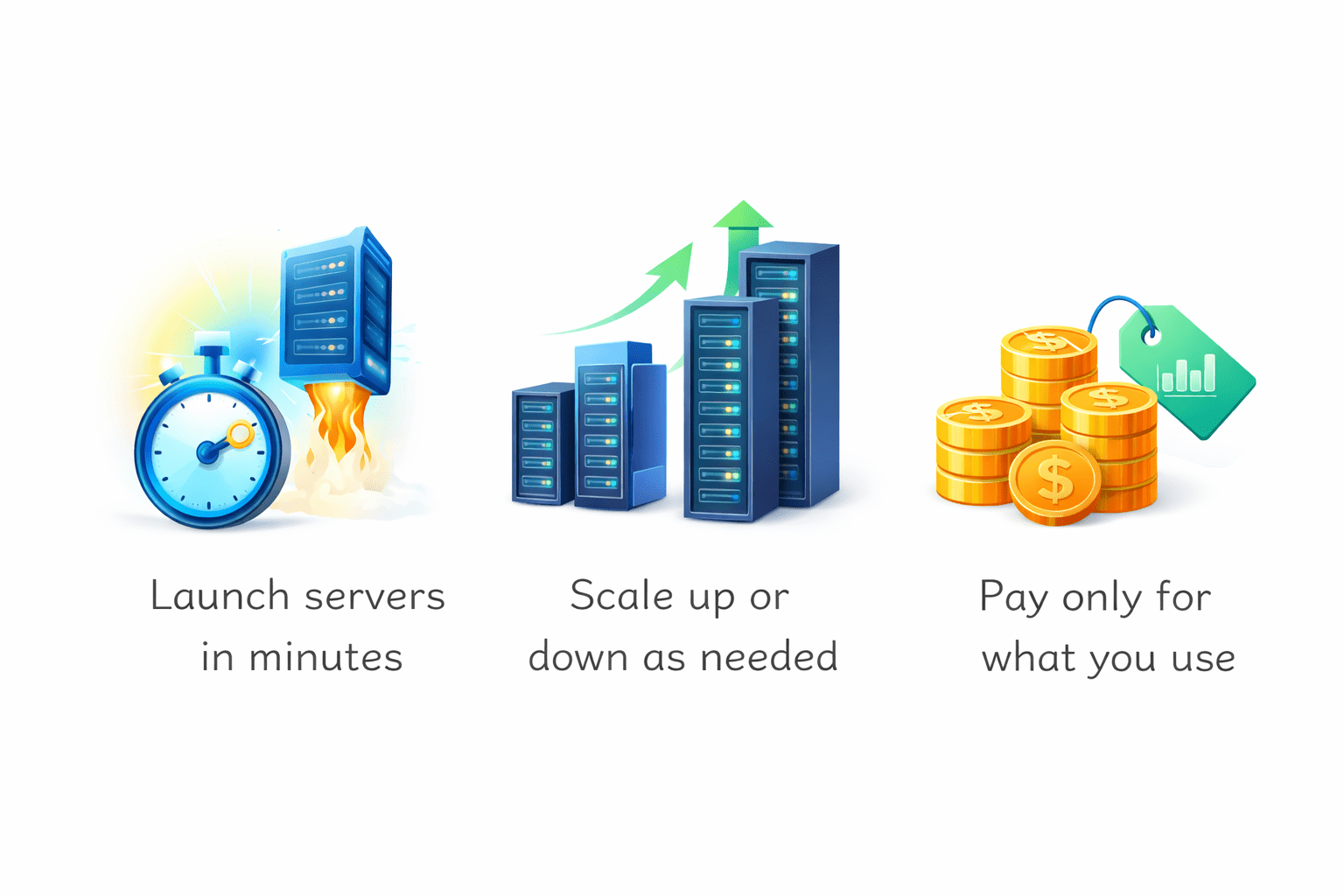

It allows you to

Launch servers in minutes

Scale up or down as needed

Pay only for what you use

Example:
Hosting a website or running backend services on a virtual server

Why EC2 is Important

Provides computing power on demand

No need to buy physical servers

Easy to scale based on traffic

What is an Instance?

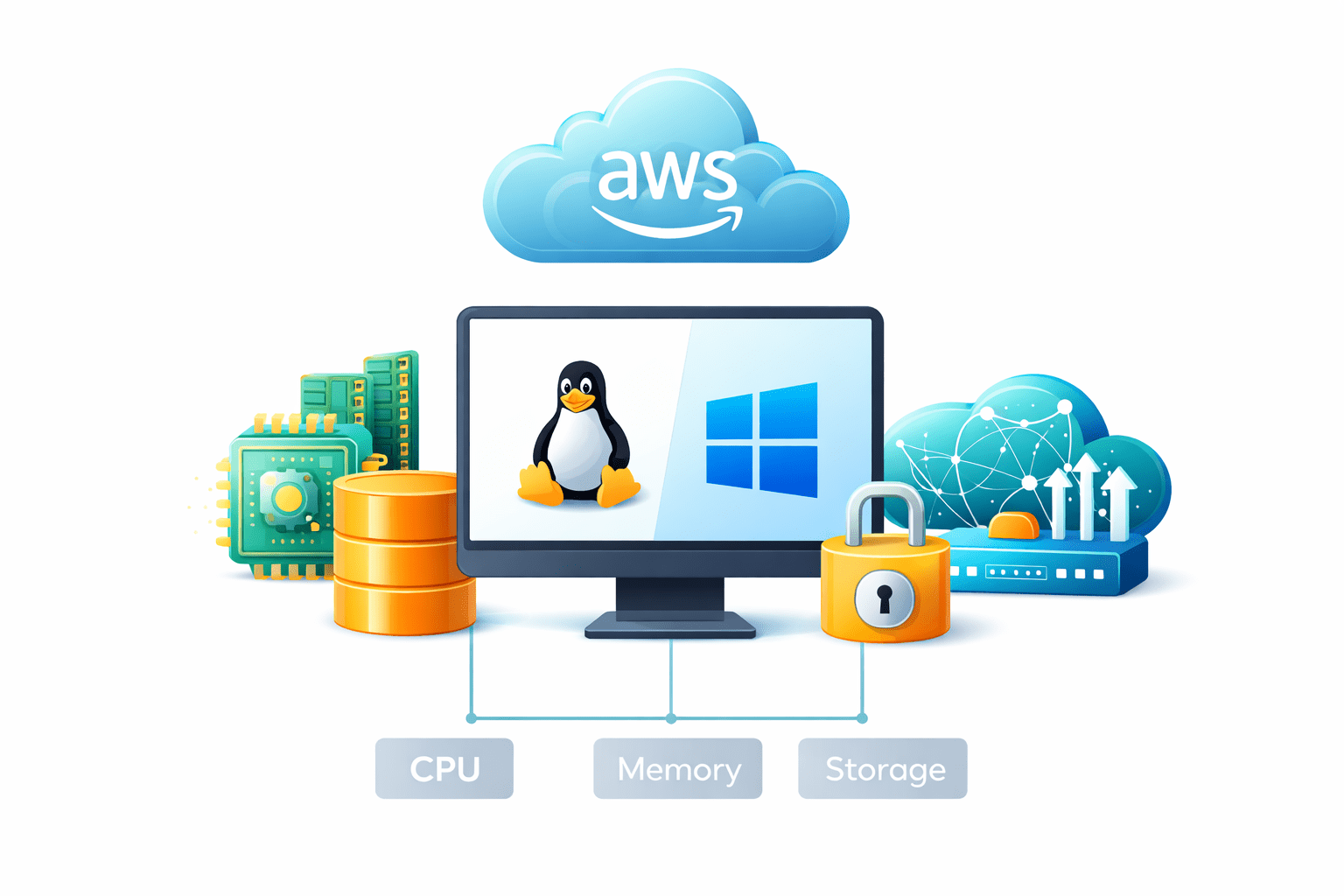

An EC2 instance is a virtual server in AWS

It is used to run applications and services in the cloud

An instance includes

Operating system (Linux / Windows)

CPU, memory, and storage

Network connectivity

In simple words, an EC2 instance is like a computer running in AWS

EC2 Instance Types

EC2 instances are grouped based on workload type

General Purpose

Balanced CPU and memory

Used for web apps, small databases

Compute Optimized

High CPU performance

Used for batch processing, gaming servers

 Memory Optimized

More RAM

Used for databases, in-memory caching

Storage Optimized

High disk performance

Used for big data, log processing

EC2 Pricing Types

AWS provides different pricing options for EC2 instances based on usage needs

Savings Plans

• Flexible
• cost savings

On-Demand

• Pay per use,
• no commitment

Reserved

• Long-term use
• lower cost

Spot

• Cheapest
• unused capacity

AMIs & Operating Systems

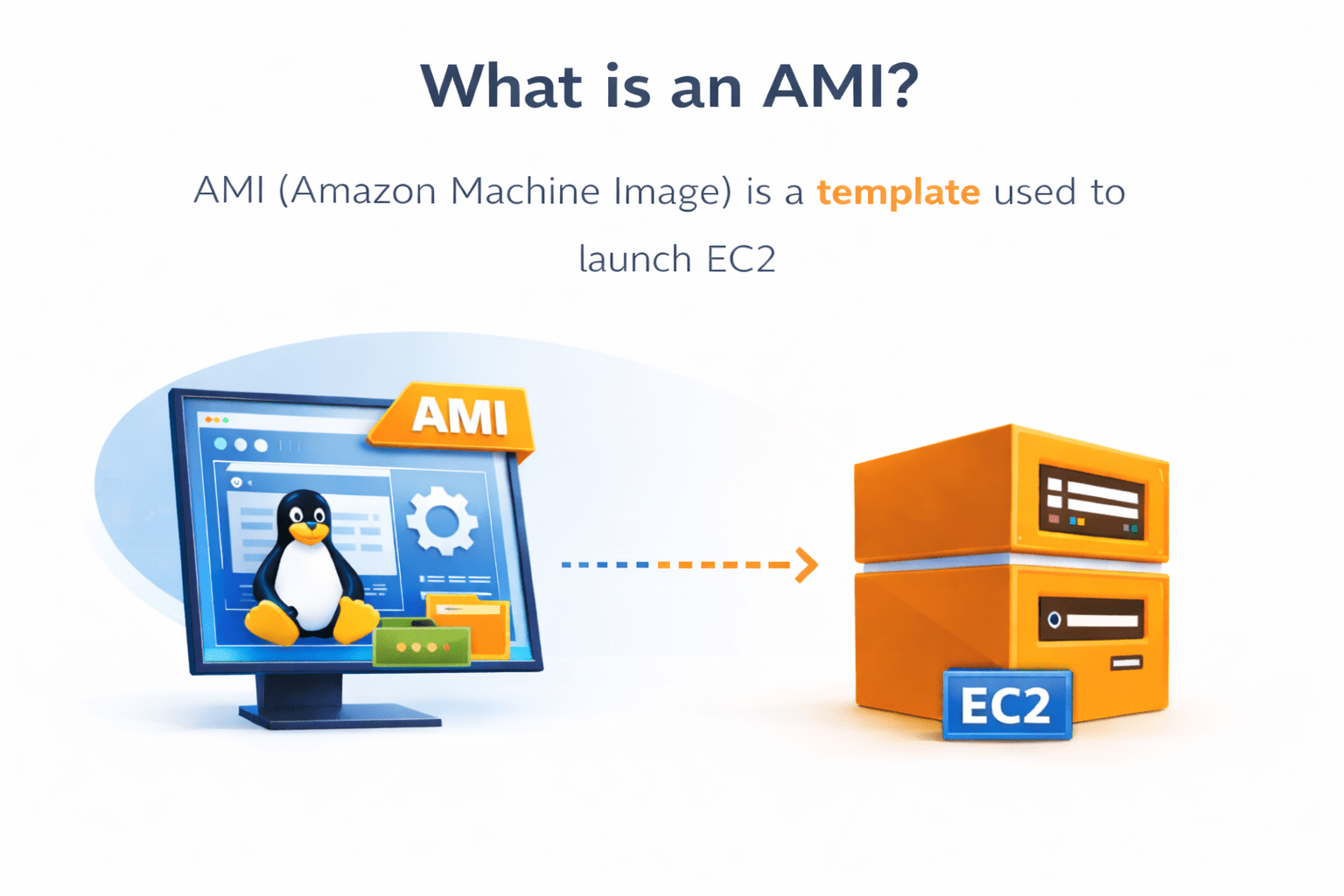

AMI (Amazon Machine Image) is a template used to launch EC2

It includes

Operating system

Pre-installed software

Common AMIs

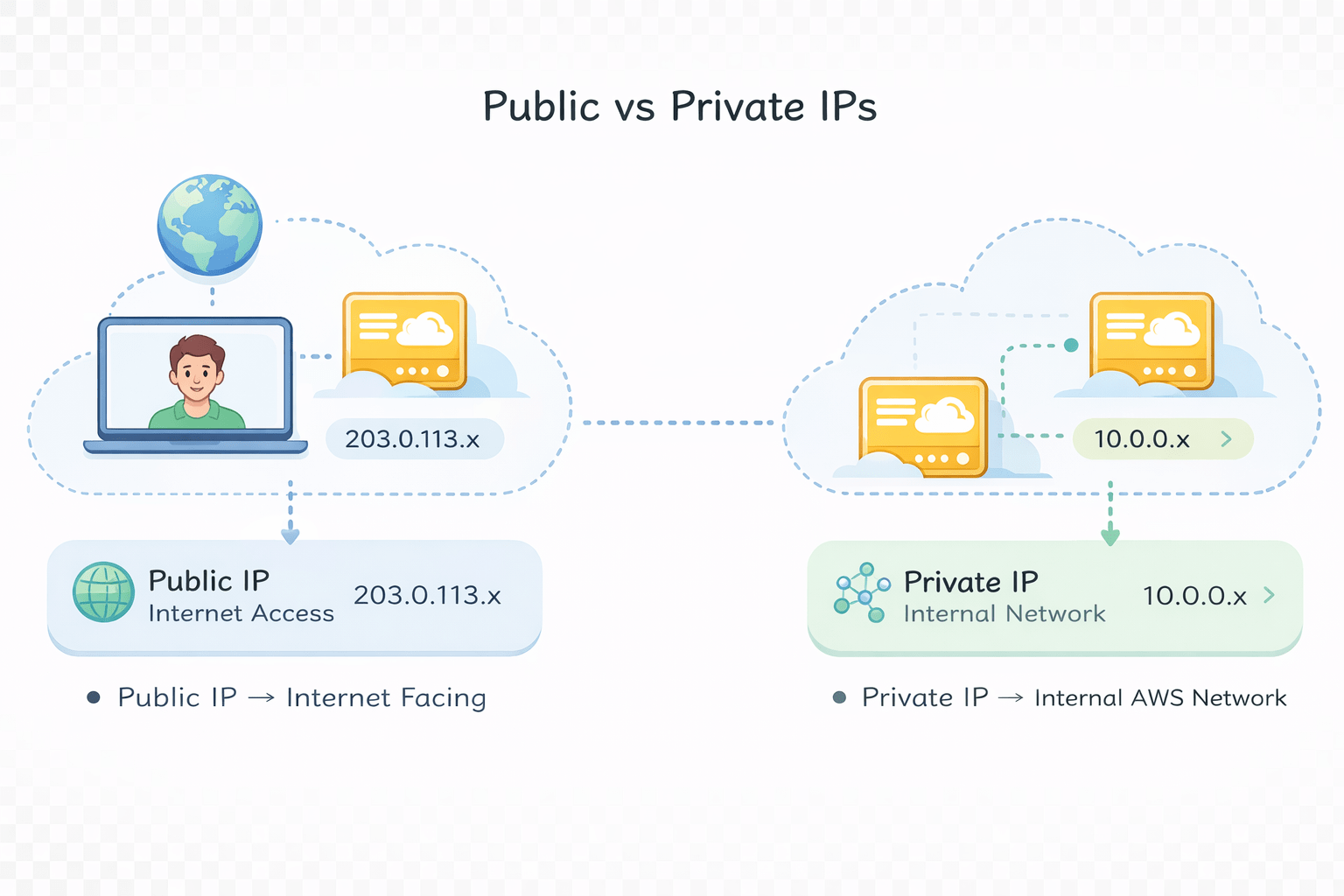

Networking & Access in EC2

Each EC2 instance has

Internal AWS network

 Internet facing

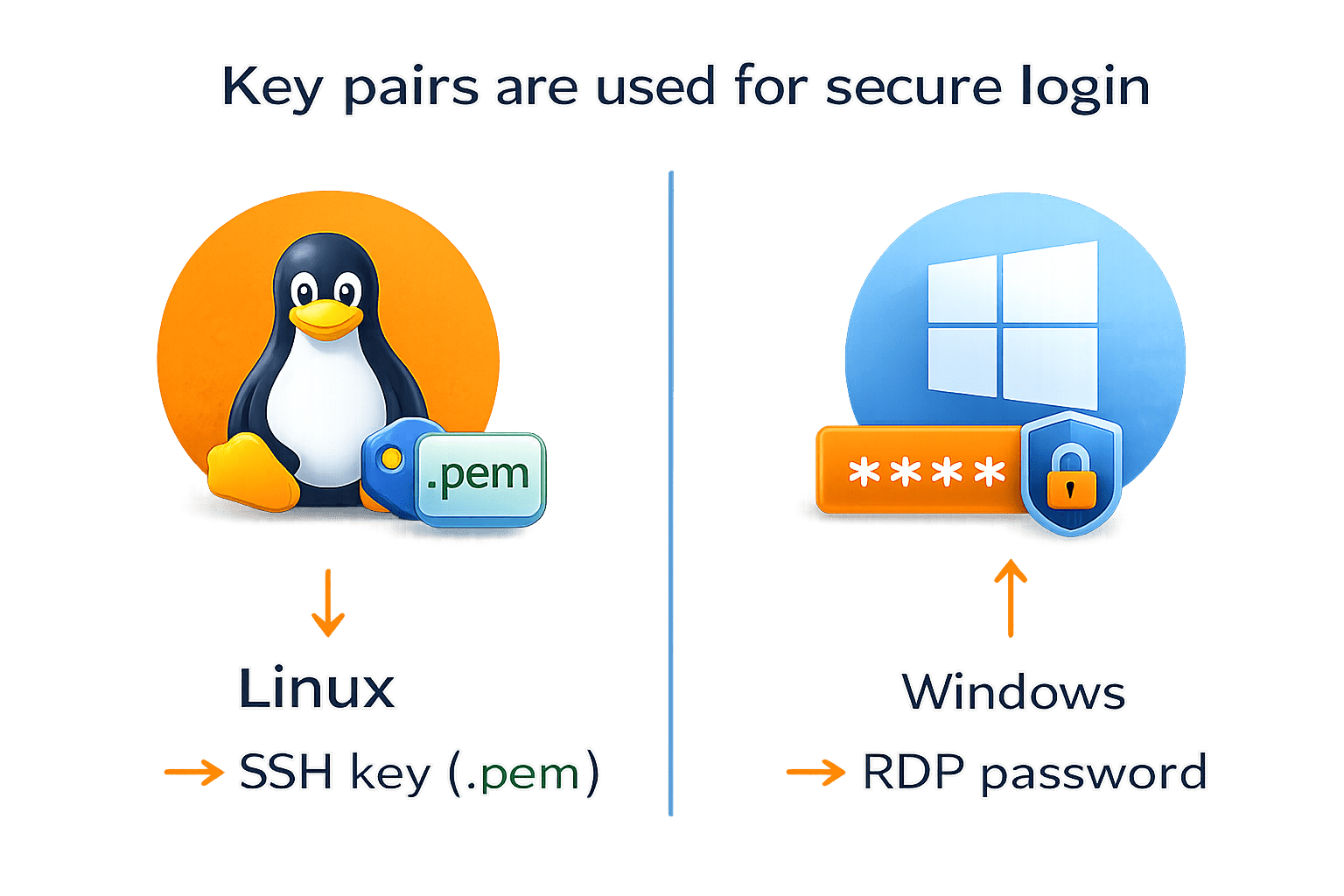

Key Pairs

Key pairs are used for secure login

Linux → SSH key (.pem)

Password login is disabled by default for security

Windows → RDP password

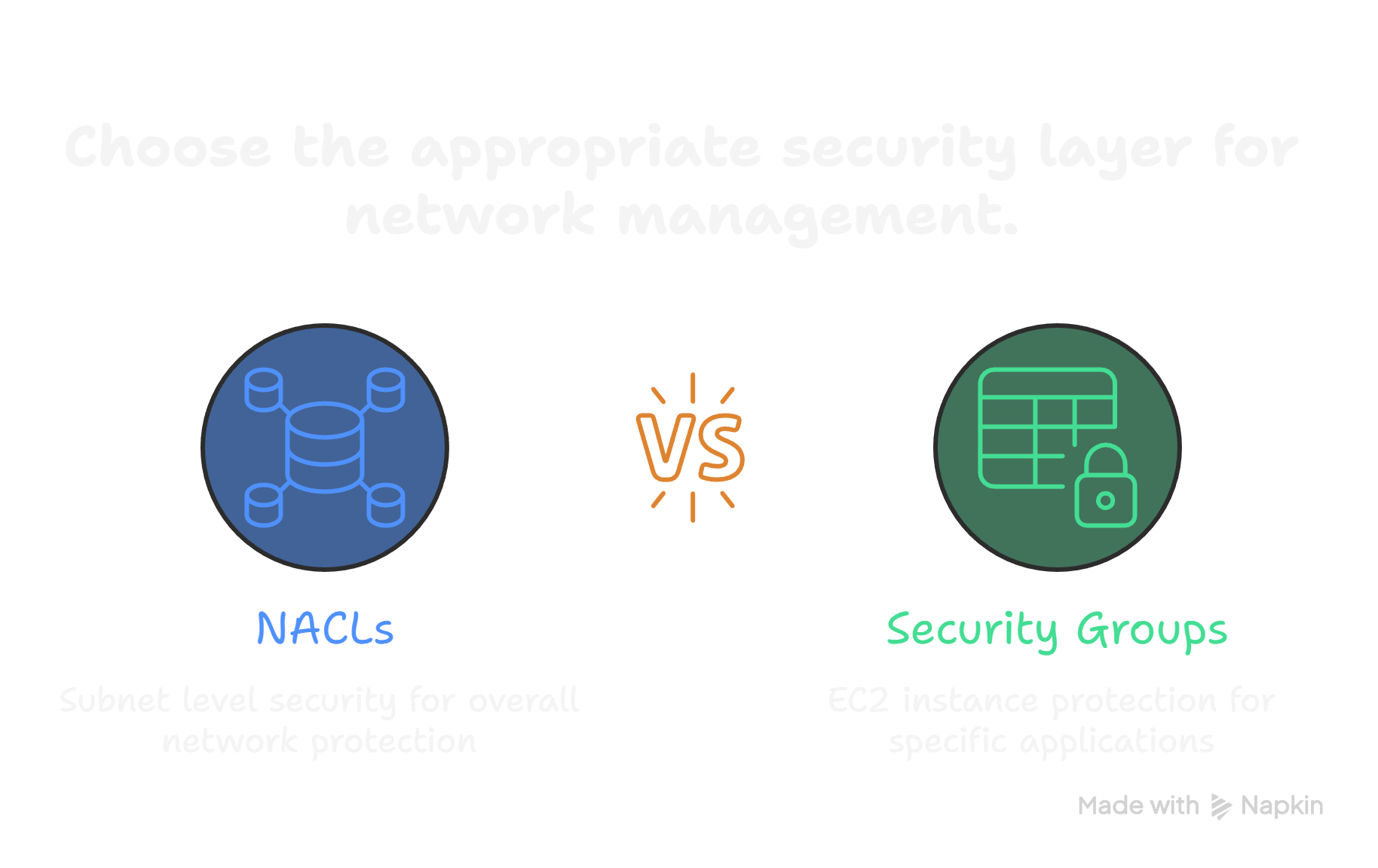

NACLs Vs Security Groups

• Provide security at the subnet level

• Support allow rules only

 Security Groups = Primary EC2 protection

• Support allow and deny rules

• Act as a firewall at the instance level

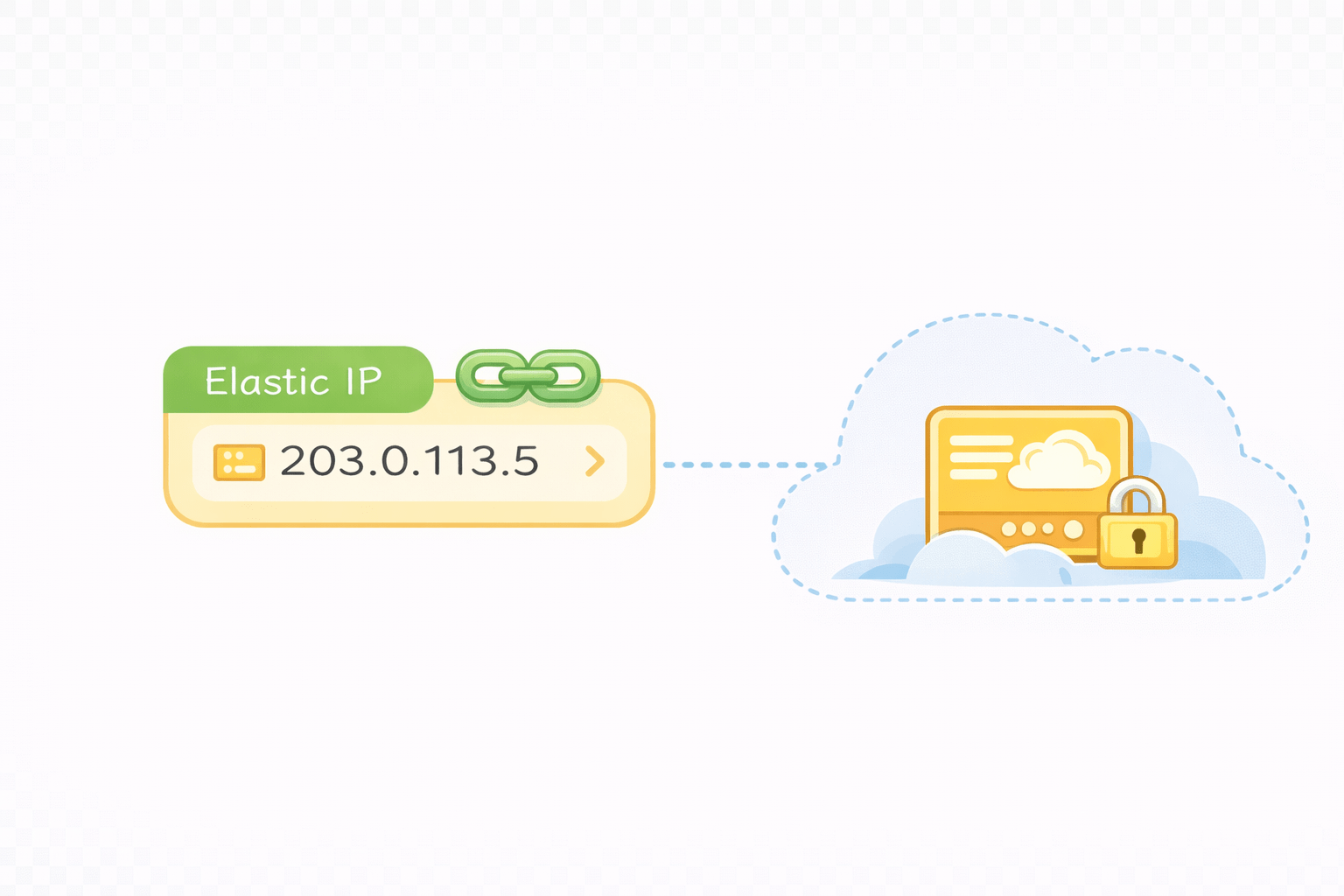

Elastic IPs

Elastic IP is a static public IP address

It's Used when

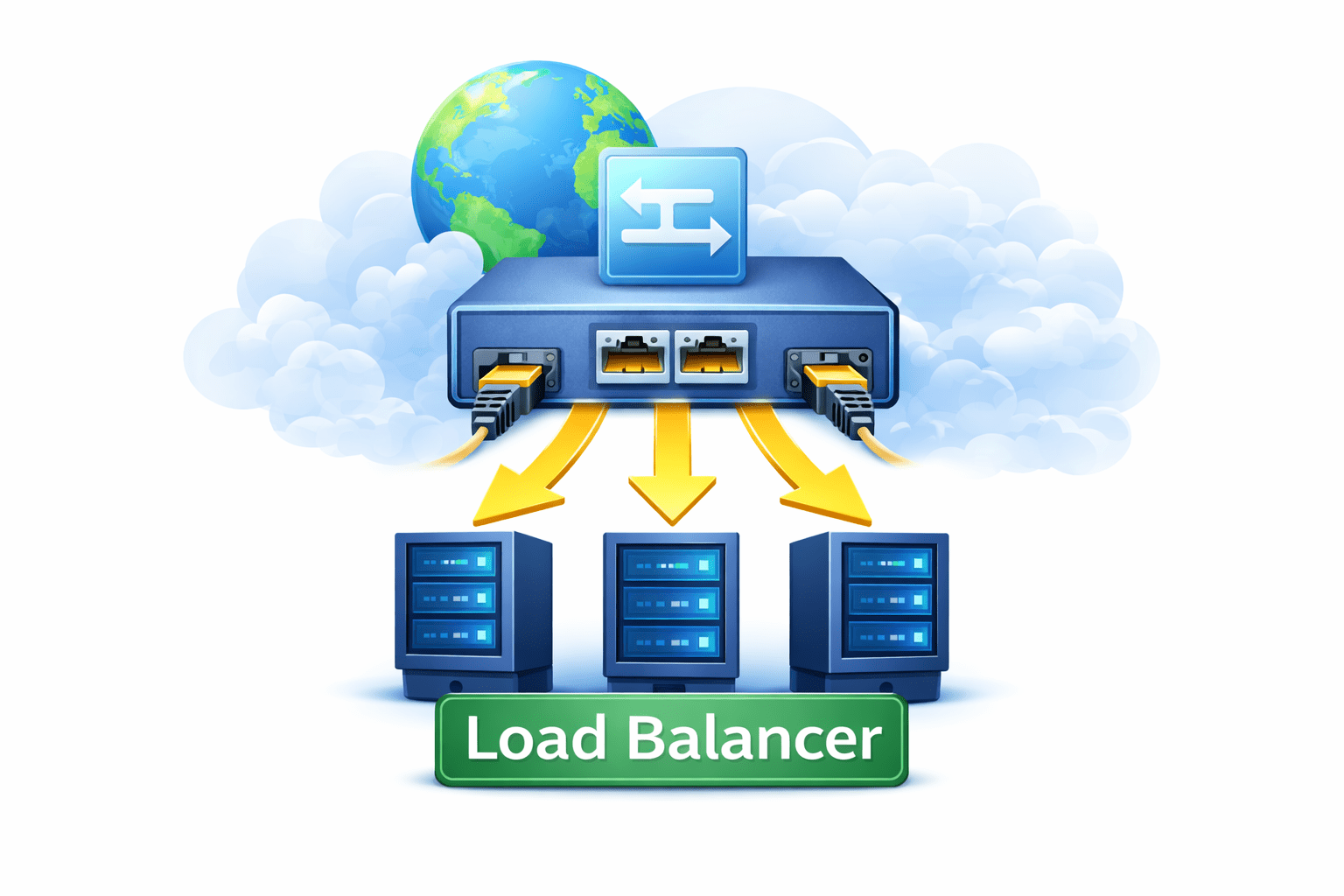

Auto Scaling & Load Balancer

Automatically increases/decreases EC2 instances

Distributes traffic across multiple EC2 instances

Used together for high availability systems

Improves availability and reliability

Used during high or low traffic

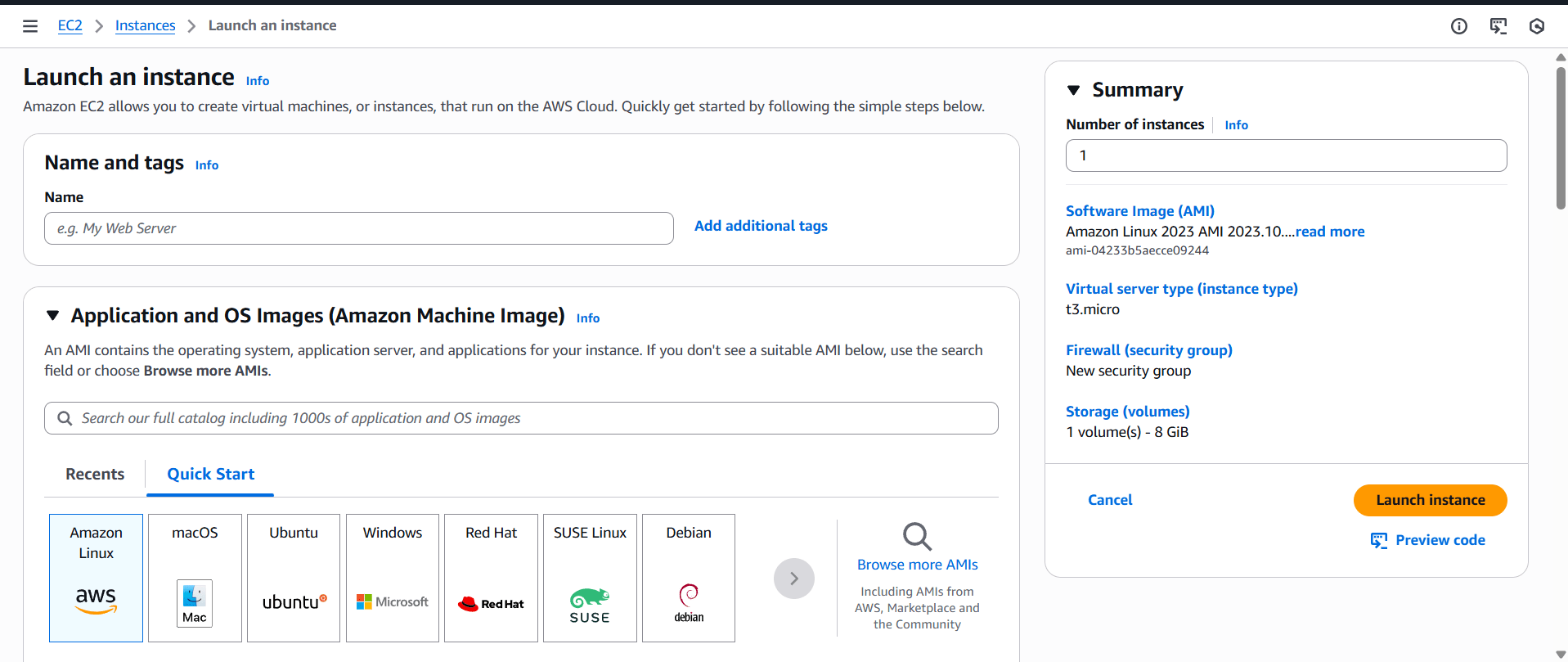

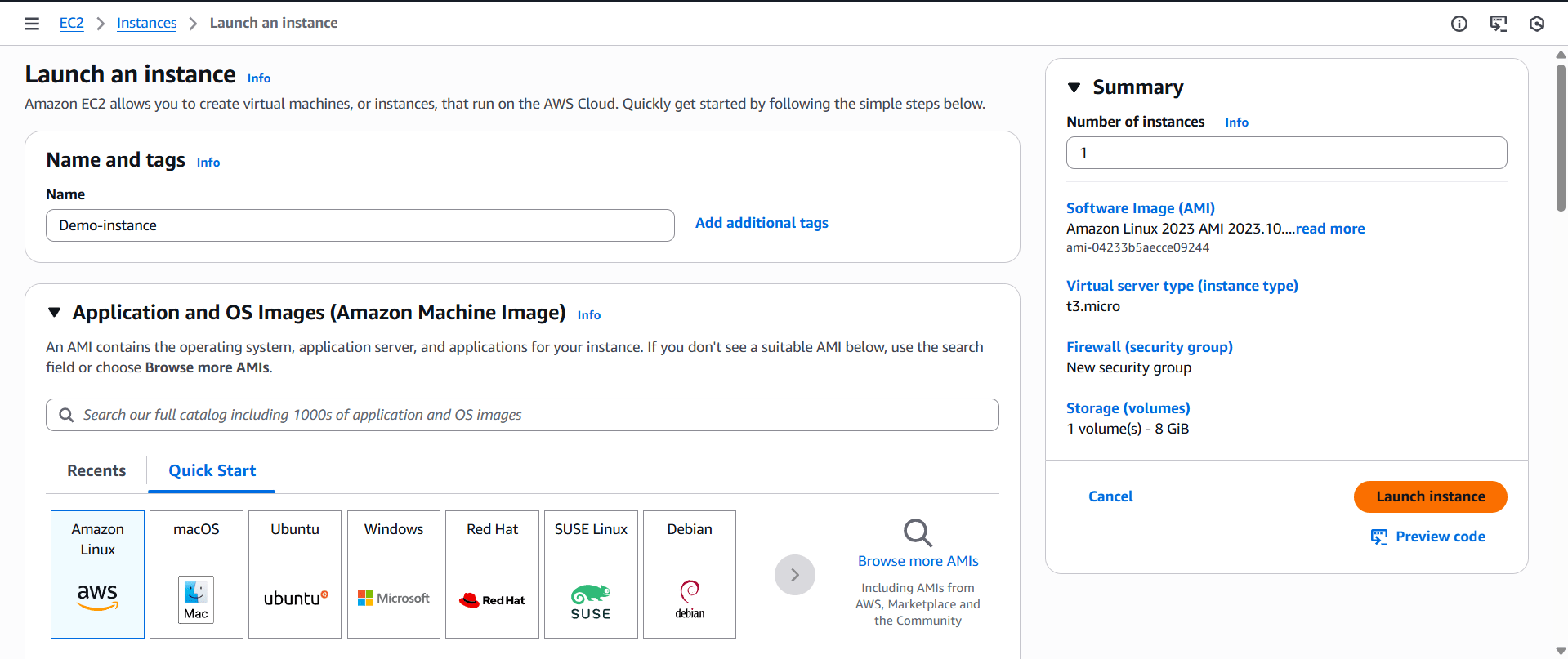

Launch an EC2 Instance

Allow SSH (port 22)

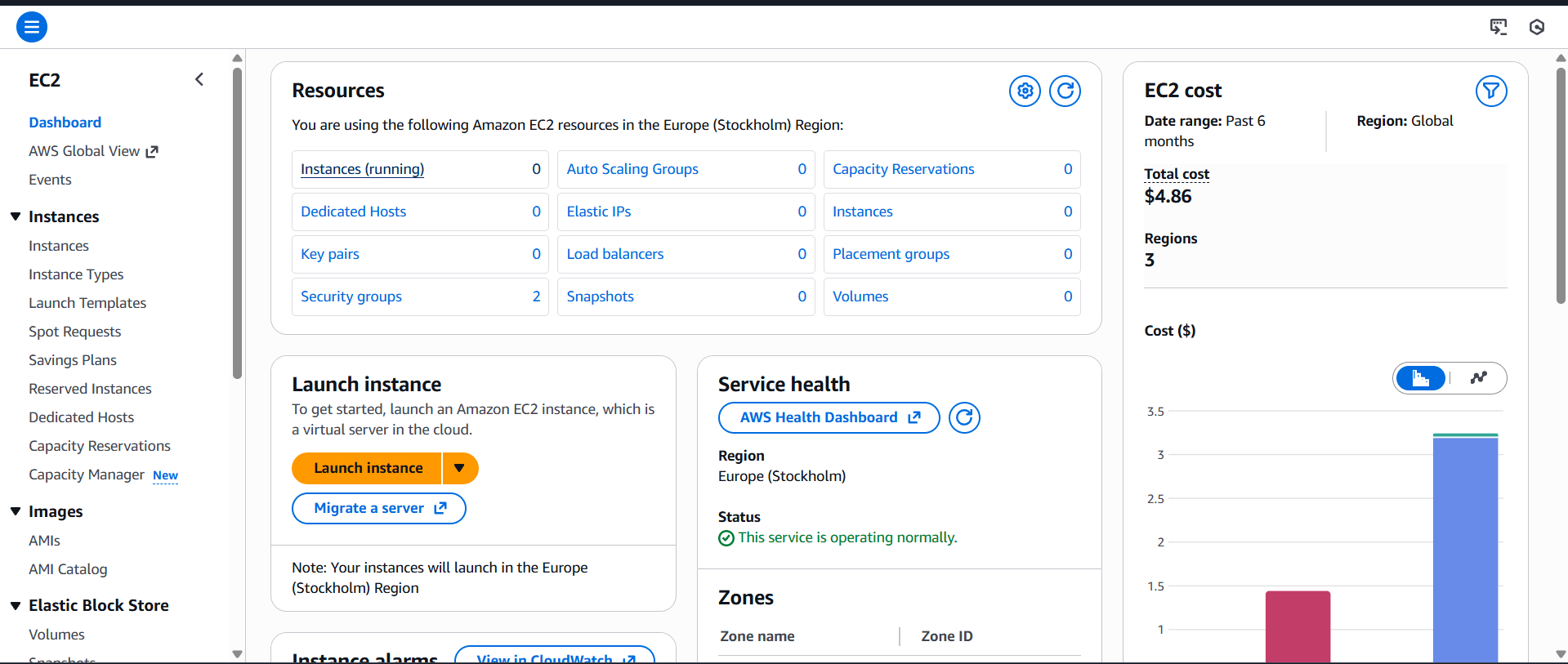

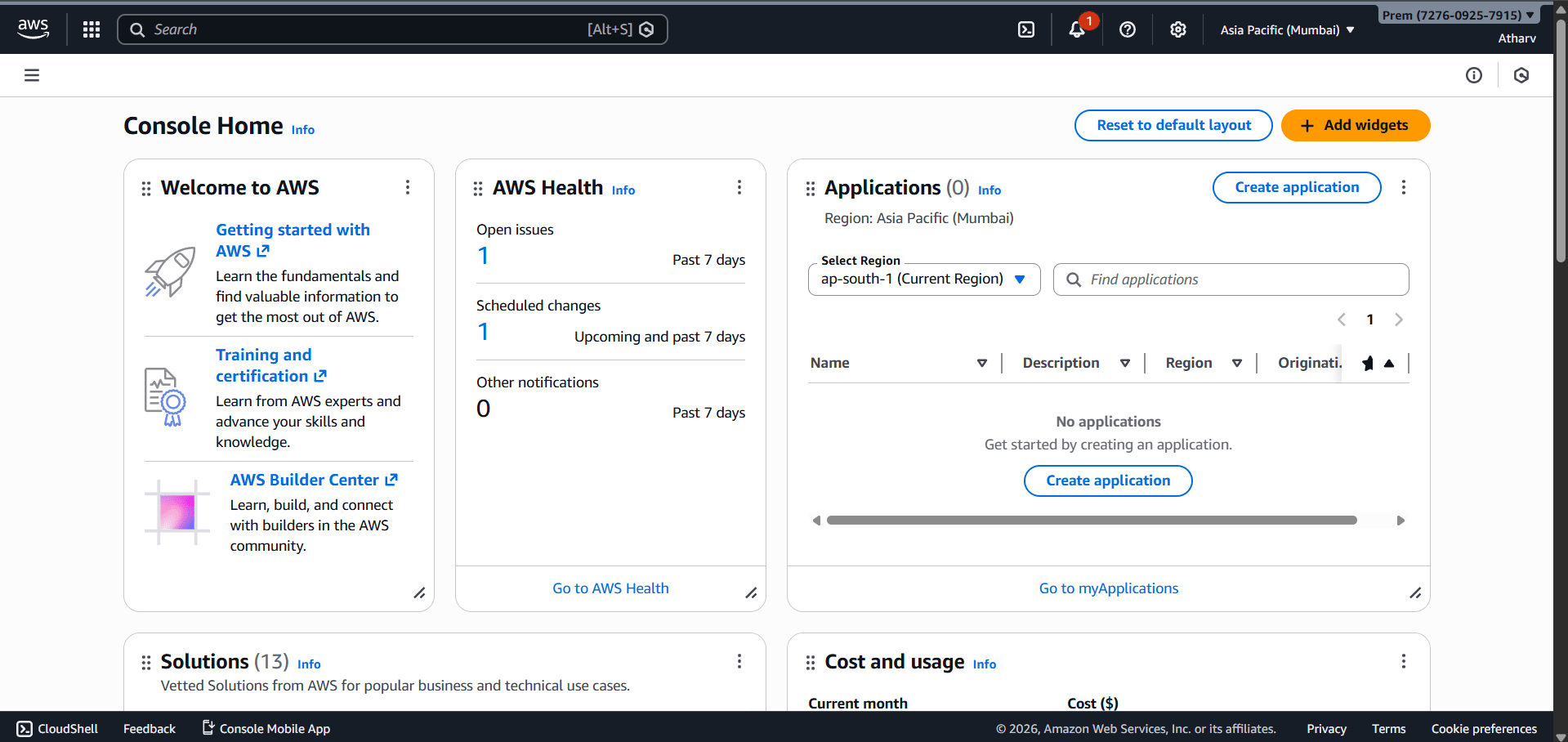

Open AWS Management Console

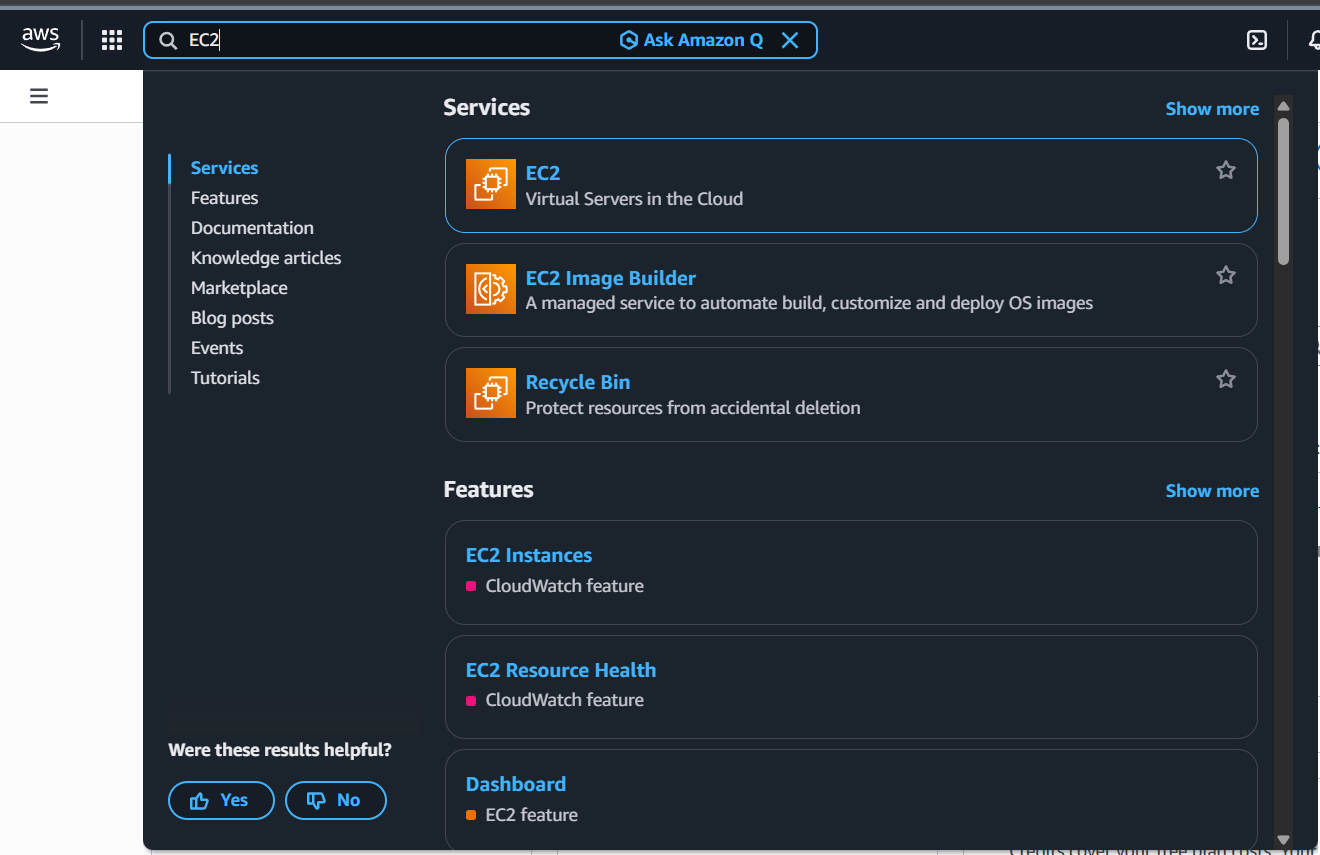

Search EC2 & Click to Launch Instance

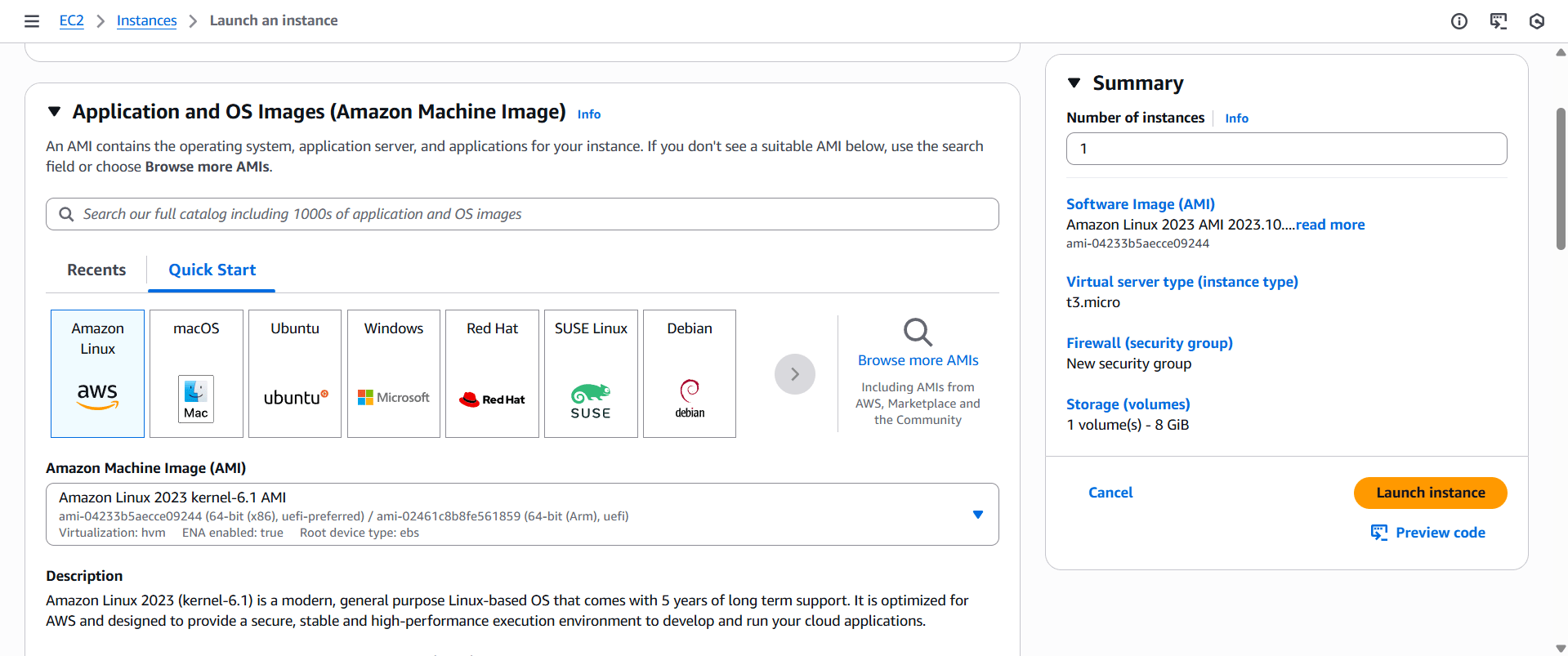

Choose AMI (Amazon Linux)

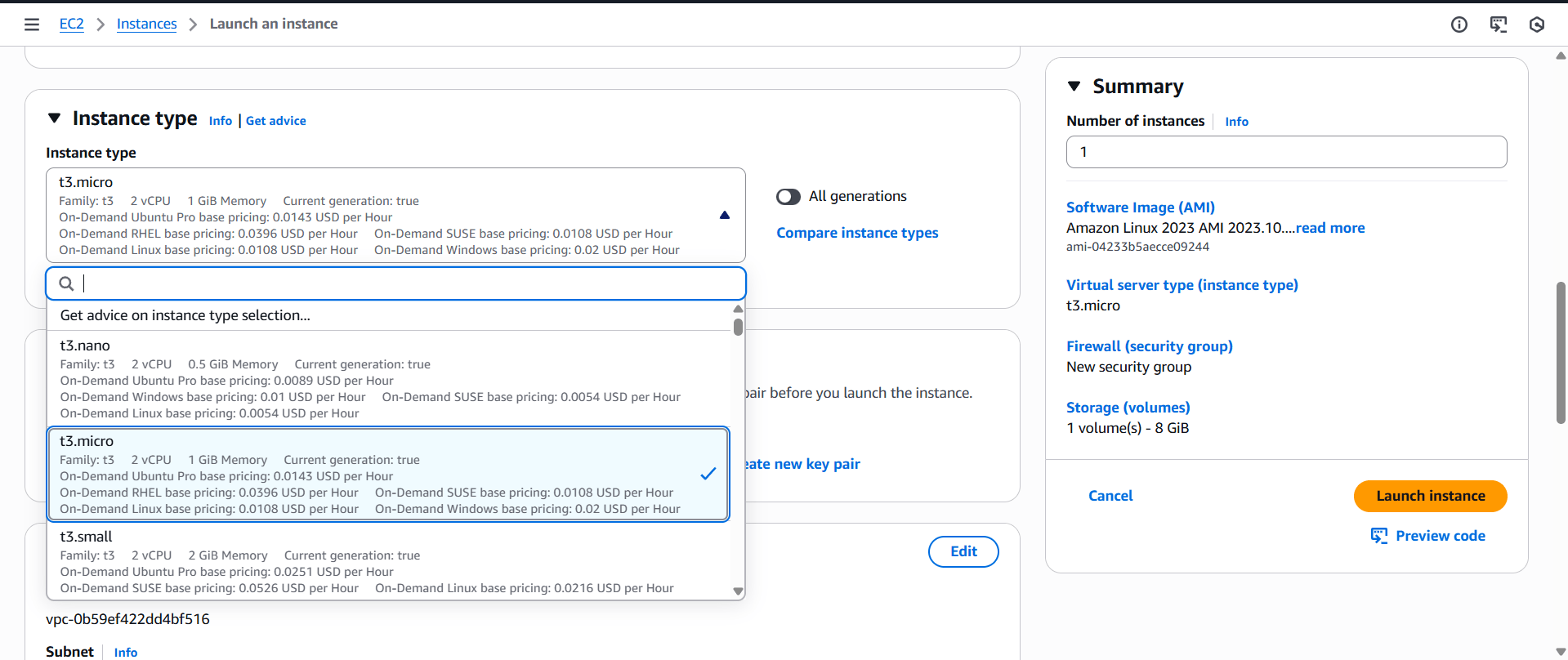

Choose instance type (t3.micro)

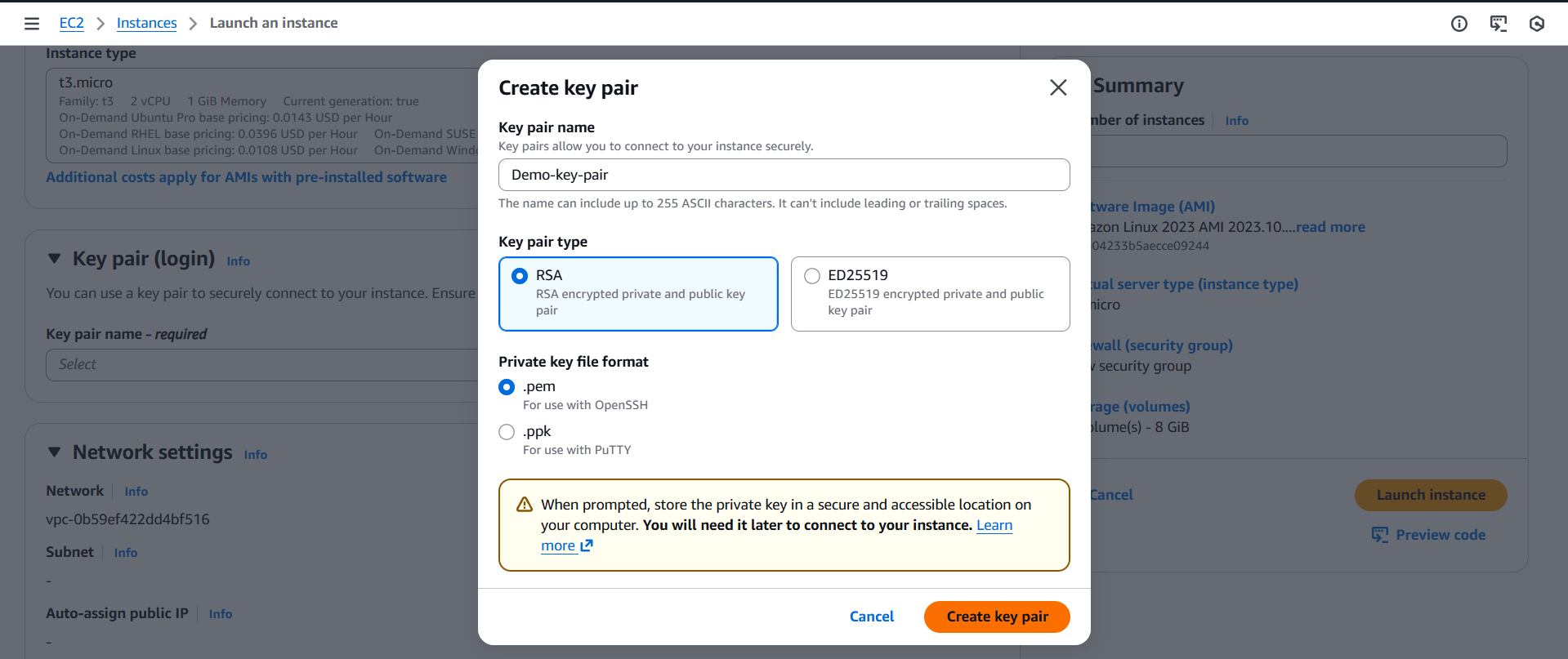

Create/download key pair

 Connect to EC2

Linux (SSH)

ssh -i key.pem ec2-user@<public-ip>

Launch an EC2 Instance

Install Web Server

Apache (Amazon Linux)

sudo yum install httpd -y

sudo systemctl start httpd

Stop, Start, Terminate Instance

• Stop → temporarily stops


• Start → restarts


• Terminate → permanently deletes

Create Snapshot of EBS

• Go to Volumes → Select volume


Click Create Snapshot

Used for:

• Backup


• Recovery


• Creating new volumes

Go to Volumes → Select volume

Creating new volumes

Create Snapshot of EBS

Click Create Snapshot

Used for:

Backup

Recovery

What is S3?

S3 (Simple Storage Service)

is an object storage service used to store files and data

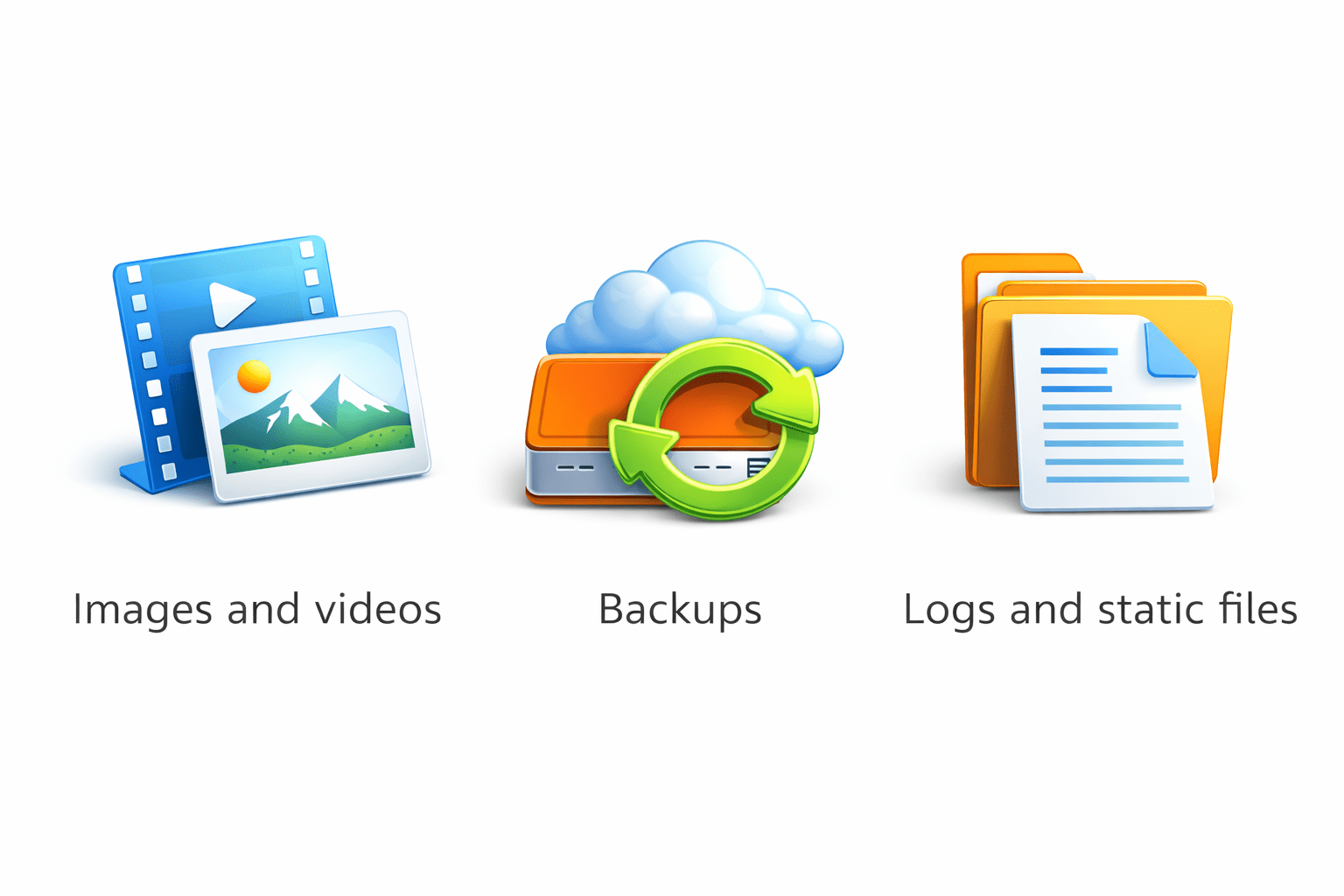

Images and videos

It is commonly used for

Logs and static files

Backups

Why S3 is Important

Highly durable and reliable

Stores large amounts of data

Easy access from anywhere

Amazon S3 Durability & Availability

Durability (11 9’s)

Amazon S3 provides 99.999999999% durability

This means data is extremely safe and designed to never be lost

S3 automatically stores data across multiple devices and locations

Availability (4 9’s)

Amazon S3 provides 99.99% availability

 S3 is designed for high uptime and reliable access

This means data is almost always accessible when needed

What is Object Storage?

Object storage stores data as objects, not files or blocks

​Unique ID

 S3 is an object storage service, best for unstructured data

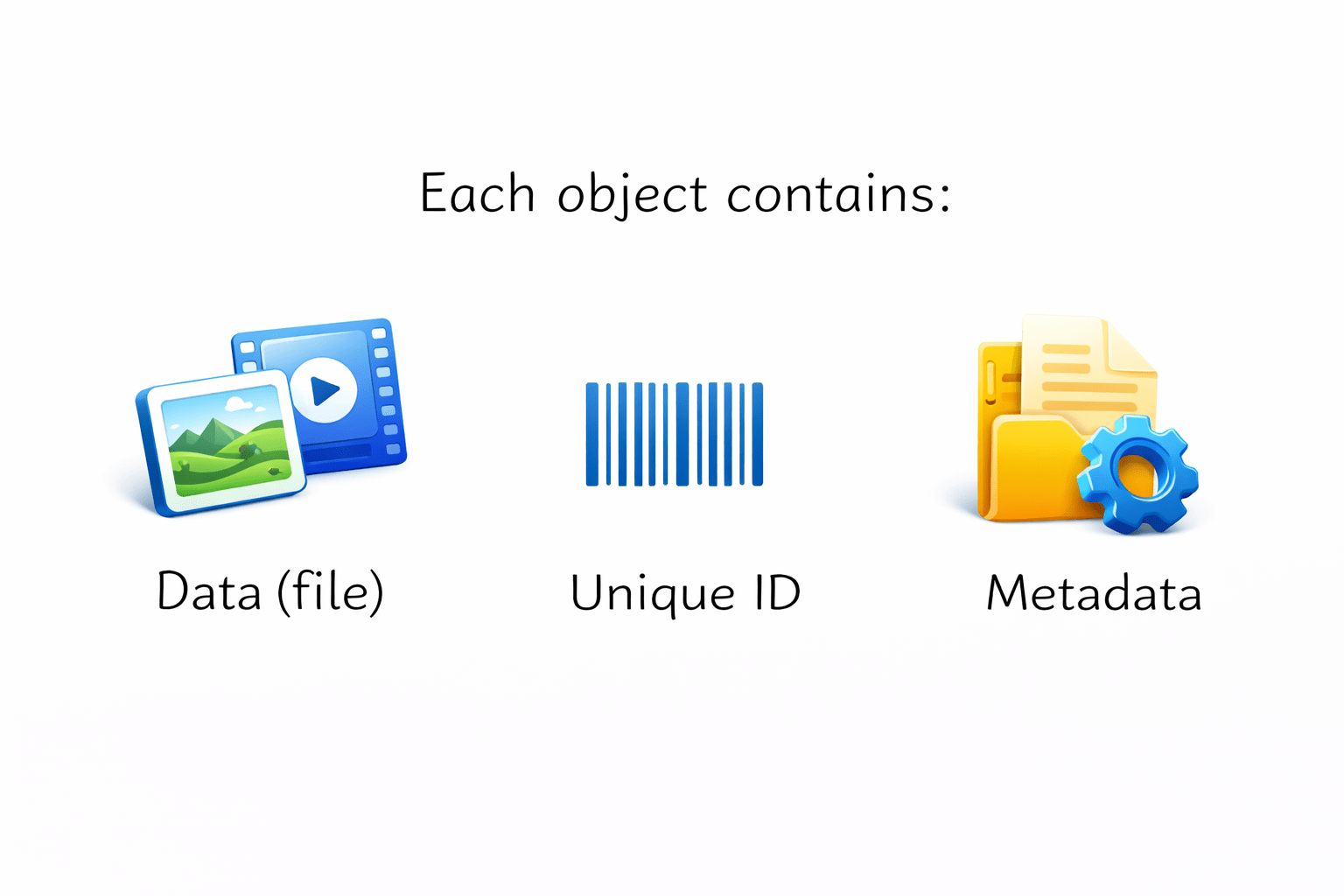

Each object contains

Data (file)

Metadata

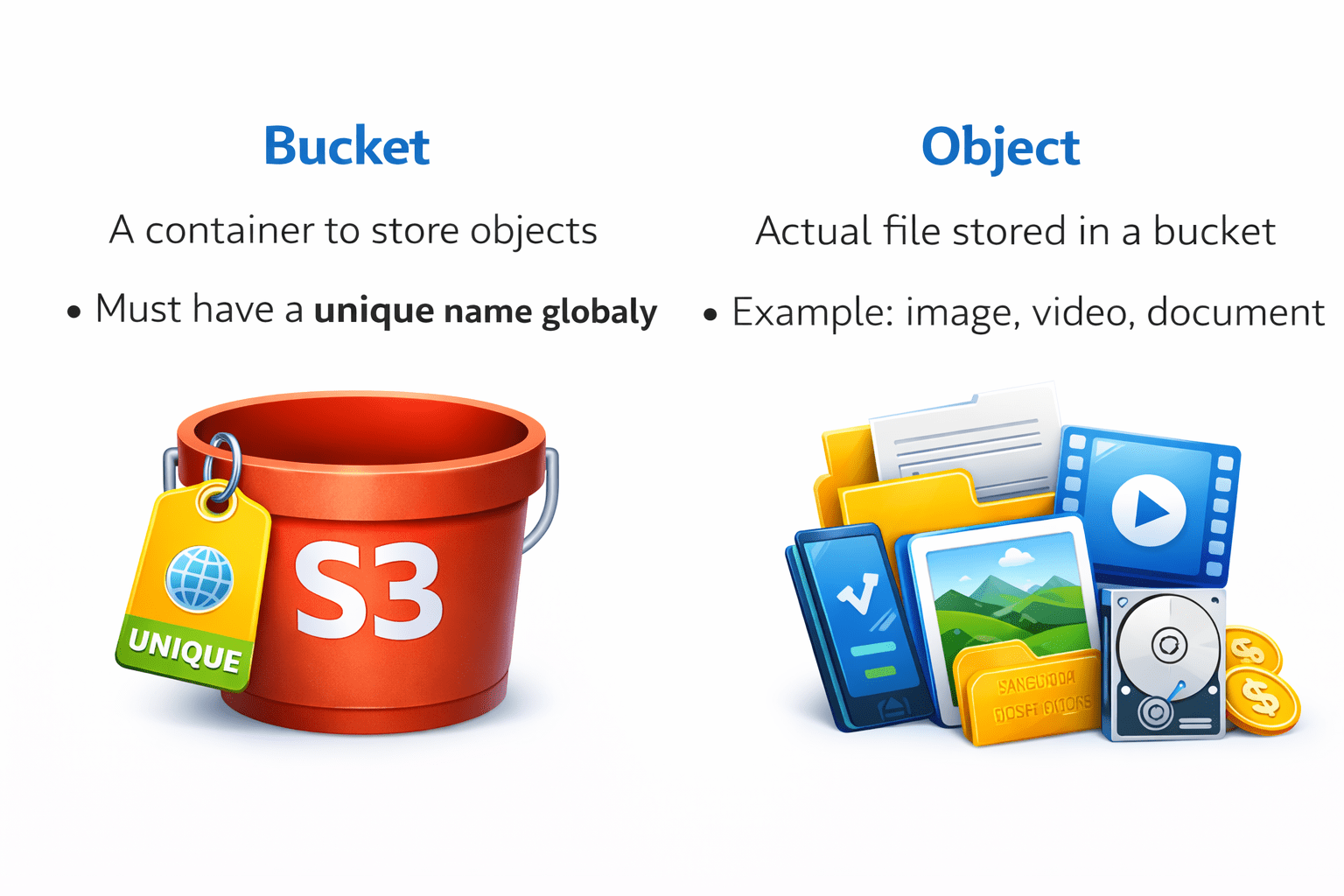

Buckets & Objects

• A container to store objects


• Must have a unique name globall

• Actual file stored in a bucket


• Example: image, video, document

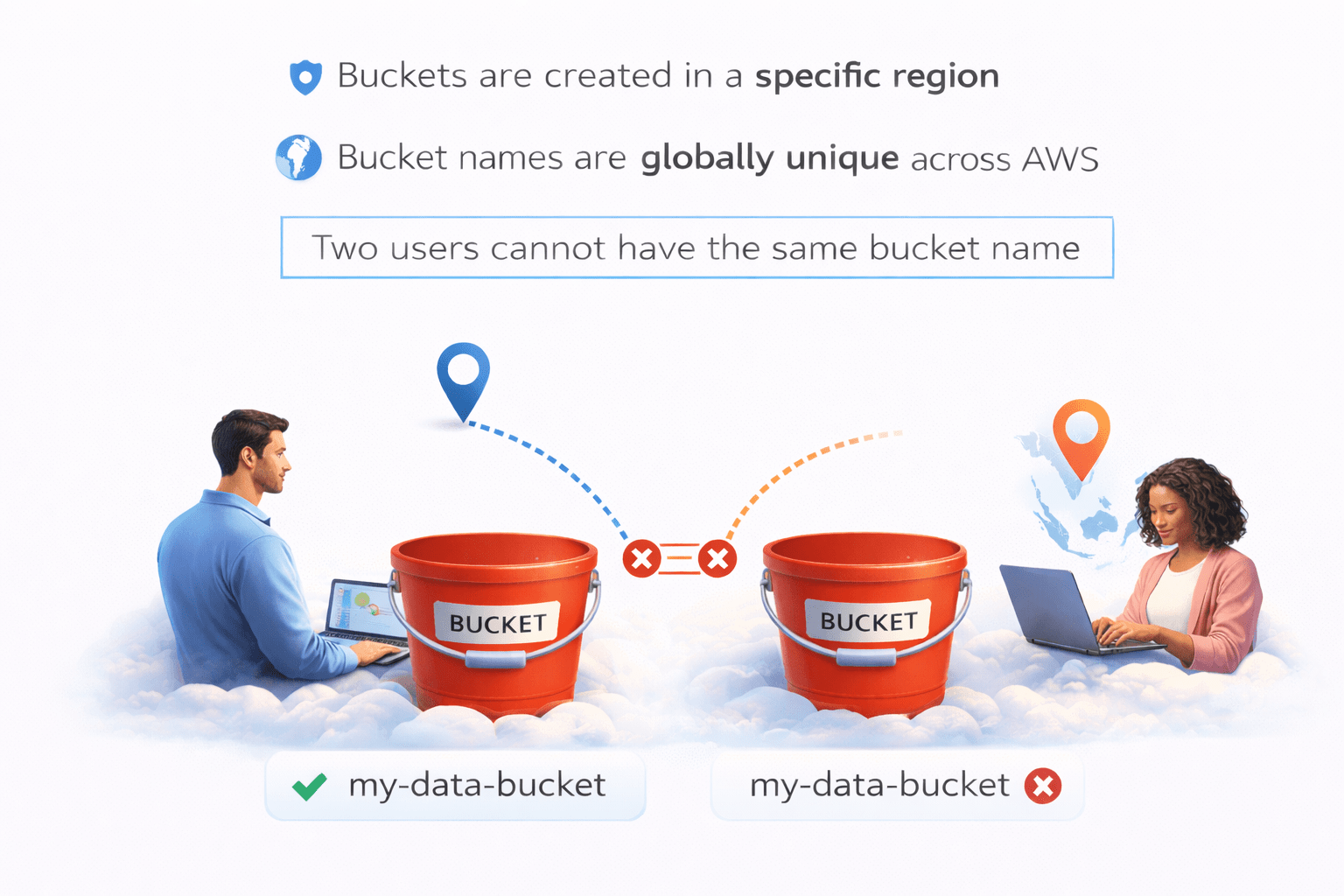

Regions & Global Namespace

Buckets are created in a specific region

Bucket names are globally unique across AWS

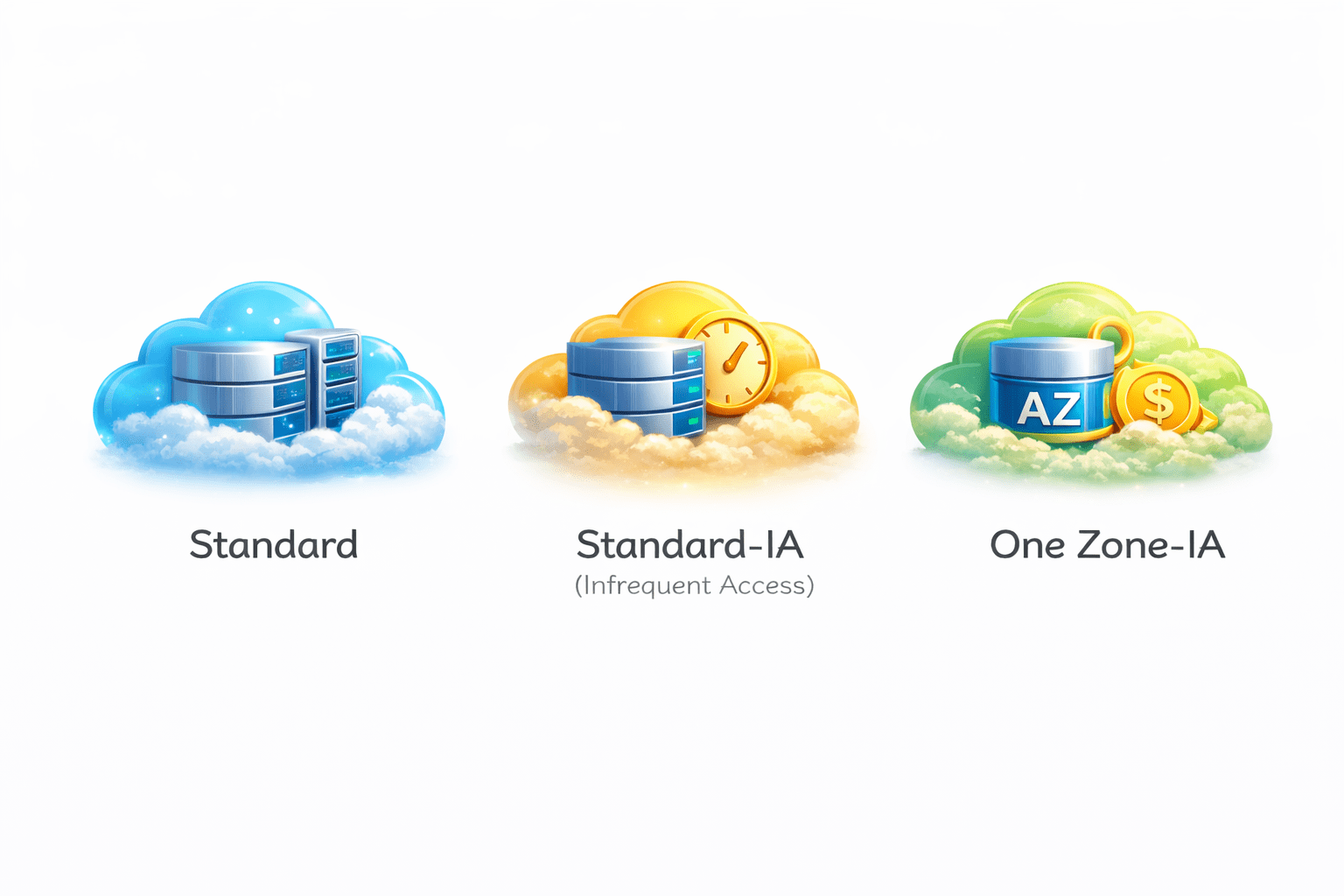

Amazon S3 Storage Classes

• Frequently accessed data

• Lower cost than Standard

• For infrequently accessed data

One Zone-IA

• Stored in one Availability Zone (low cost)

• Low latency and high availability

Standard

Standard-IA (Infrequent Access)

• Less frequently accessed data

Amazon S3 Storage Classes

• Data retrieval takes time

• Retrieval takes longer than Glacier

Intelligent-Tiering

Glacier

Glacier Deep Archive

• Long-term archival storage

• Very low cost

• Lowest-cost storage option

• Used for very long-term data retention

• AWS automatically moves data

• Based on access patterns

Cross-Region Replication (CRR)

From one region to another

Automatic copying of objects

Disaster recovery

Compliance

Low-latency access

Security & Access in S3

• Control access at bucket level

• Grant permissions to users/roles

Public access must be handled carefully

Bucket Policies

• JSON-based policies

Example: read-only or full access

IAM Policies for S3

Public vs Private Buckets

Private

Public

Security & Access in S3

• Prevents accidental public exposure

• Used to share private files securely

Block Public Access

Pre-Signed URLs

• Recommended for most buckets

• Temporary access to objects

Hands-On: Amazon S3 Practical

Step 1: Create an S3 Bucket

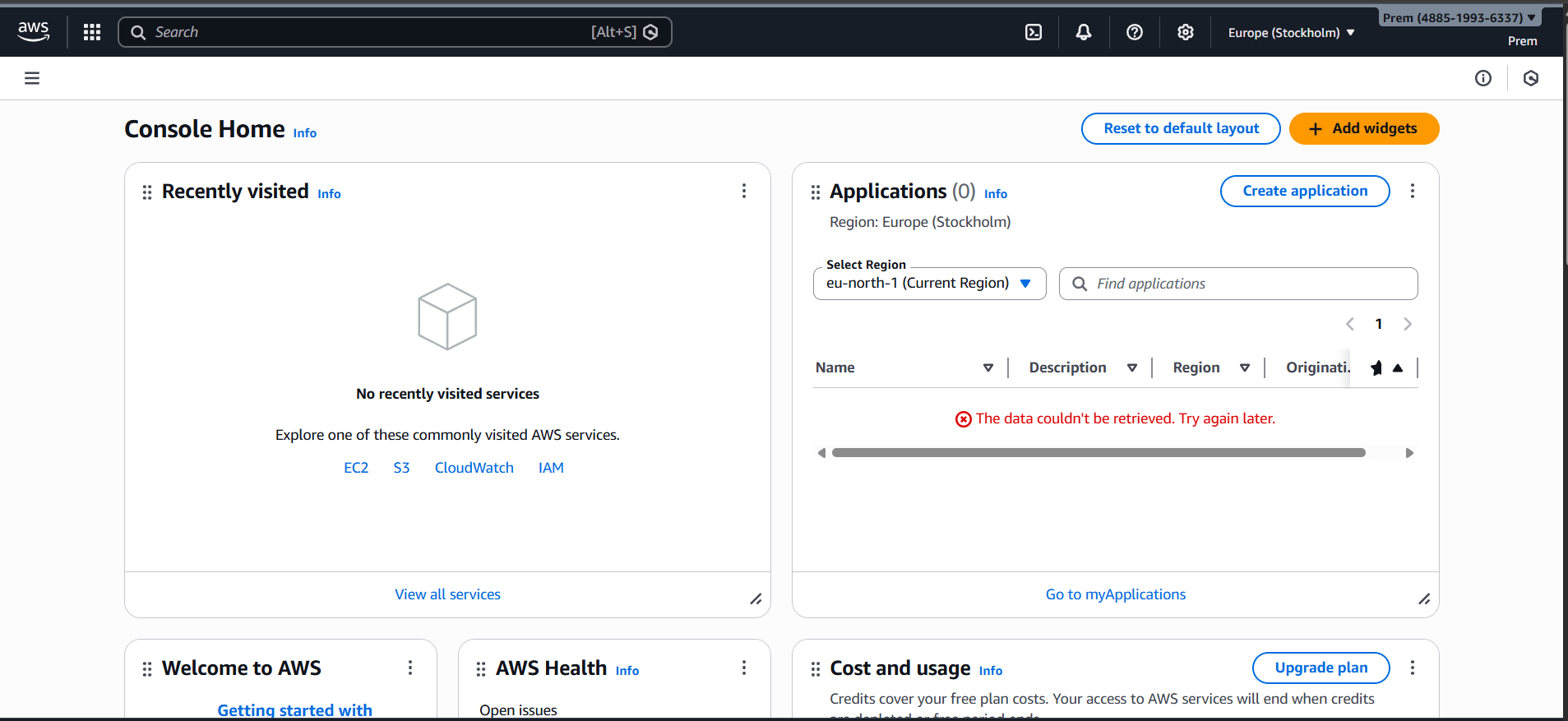

1. Login to AWS Management Console

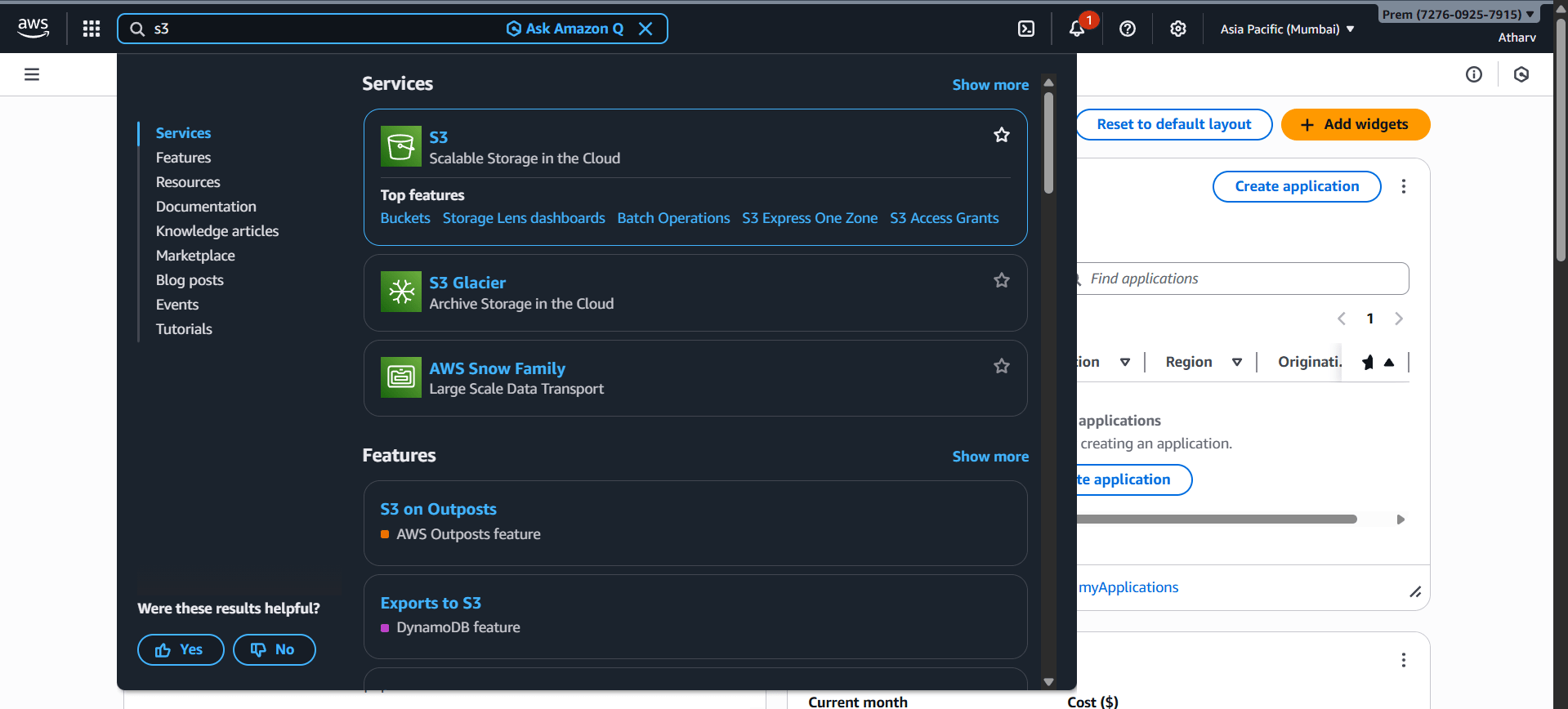

2. Search for S3


3. Click Create bucket

Fill details:

• Bucket name: my-s3-demo-bucket-123 (must be globally unique)


• Region: Choose nearest region (e.g., Mumbai)

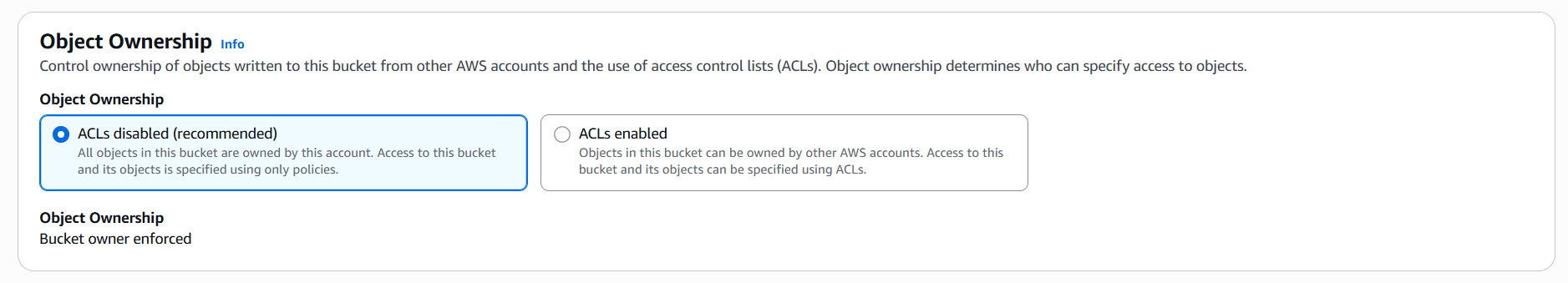

• Object Ownership: Keep default

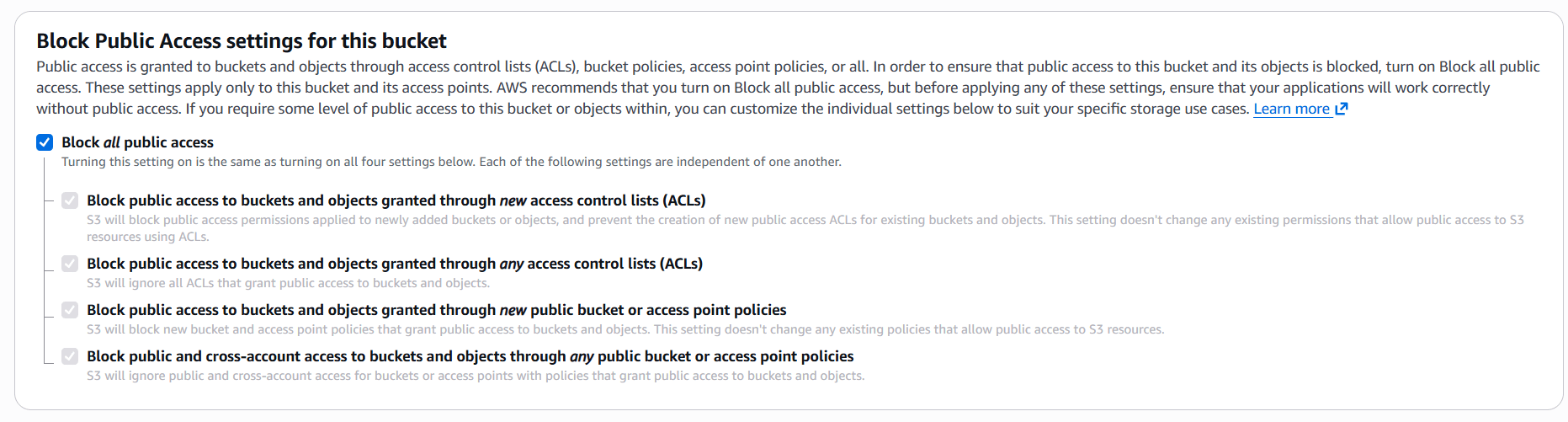

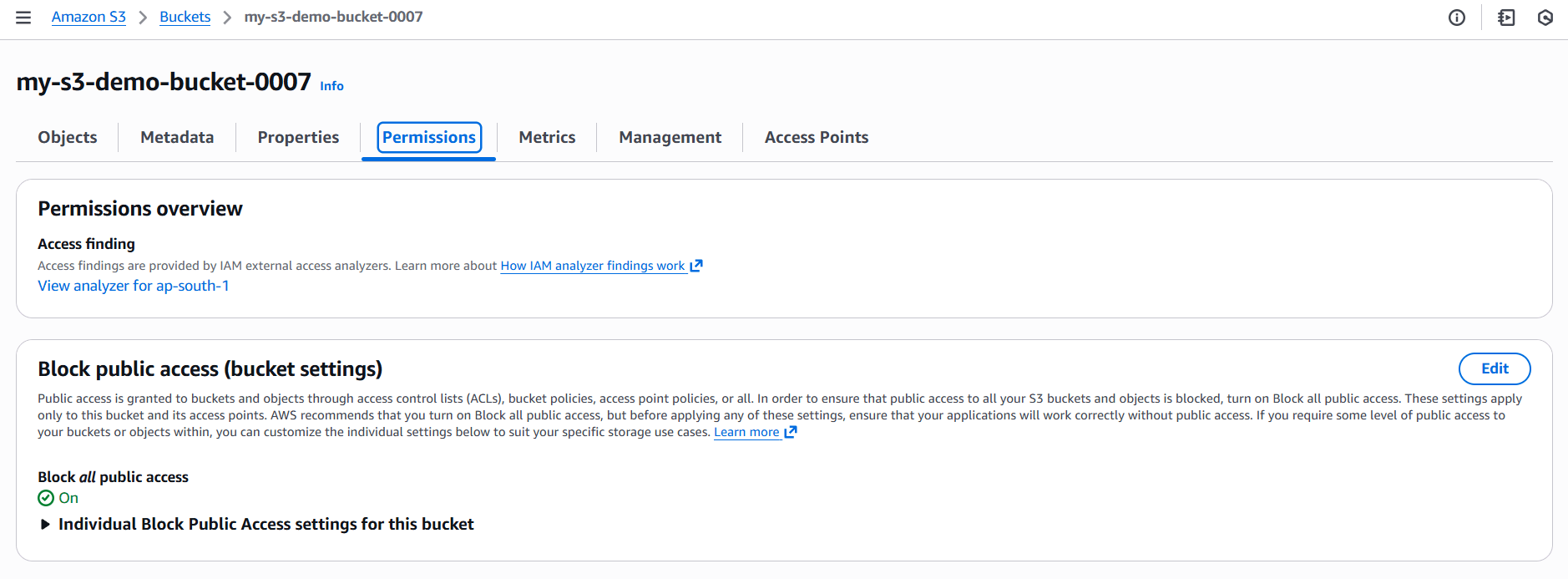

• Block Public Access: Keep ON (recommended)


Click Create bucket

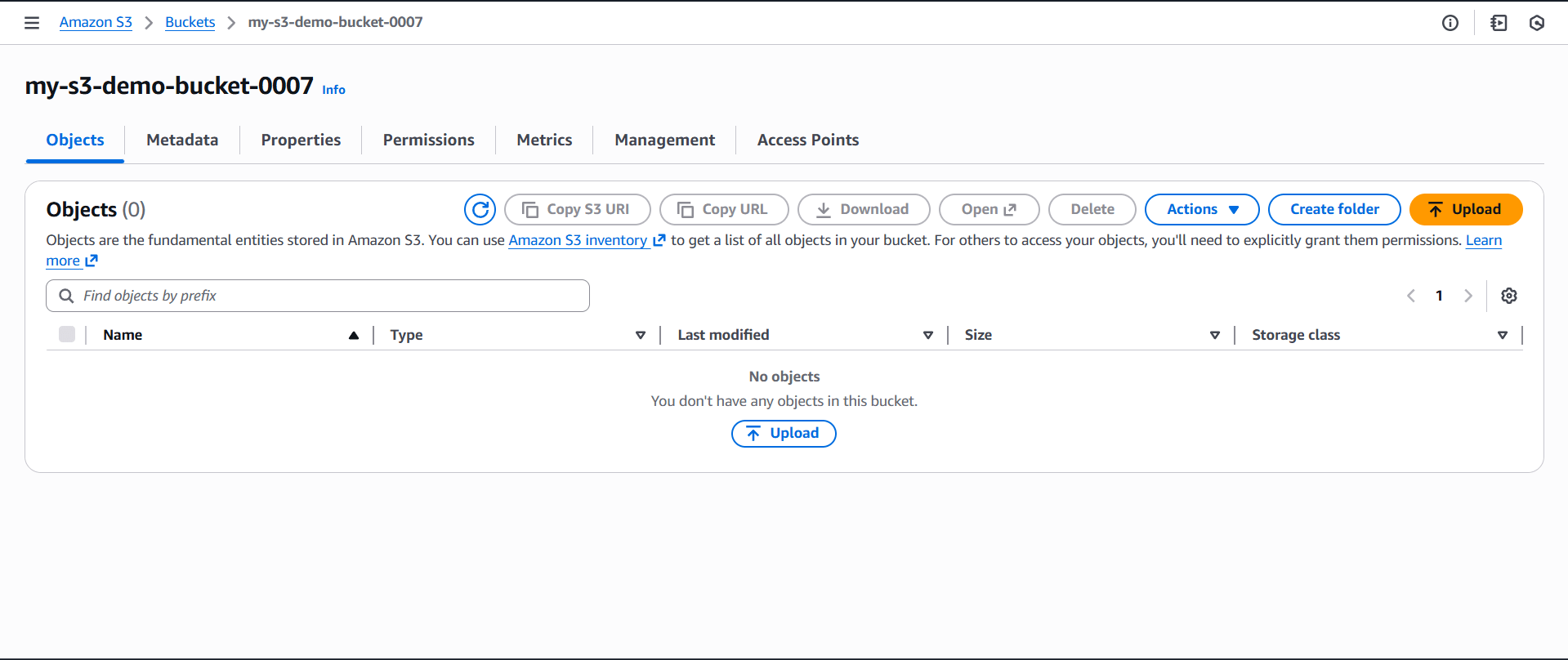

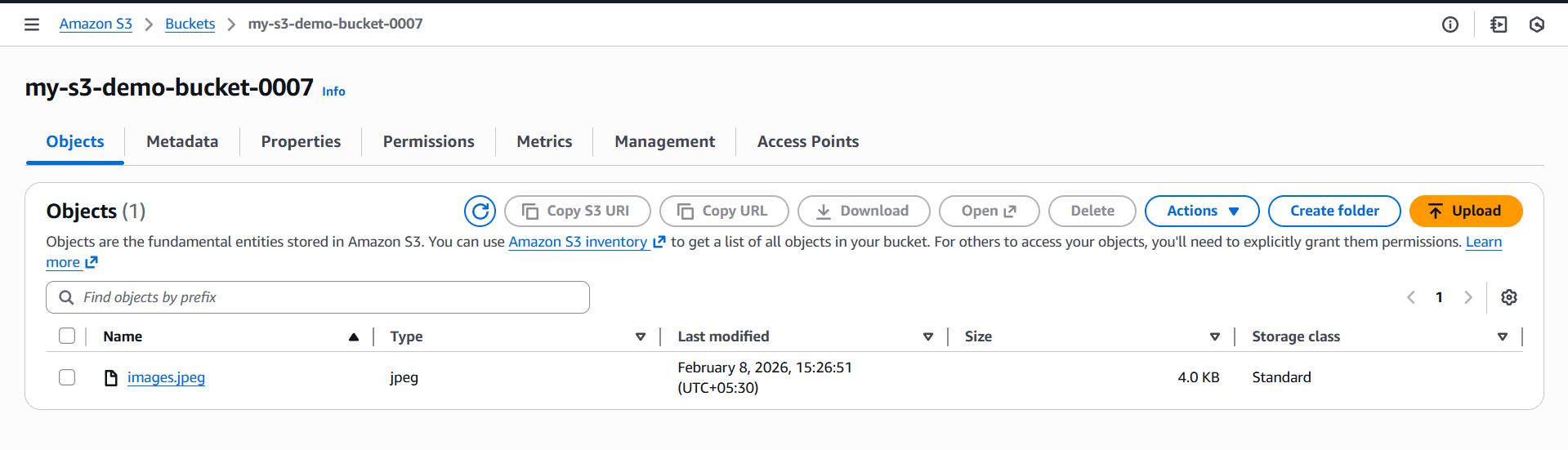

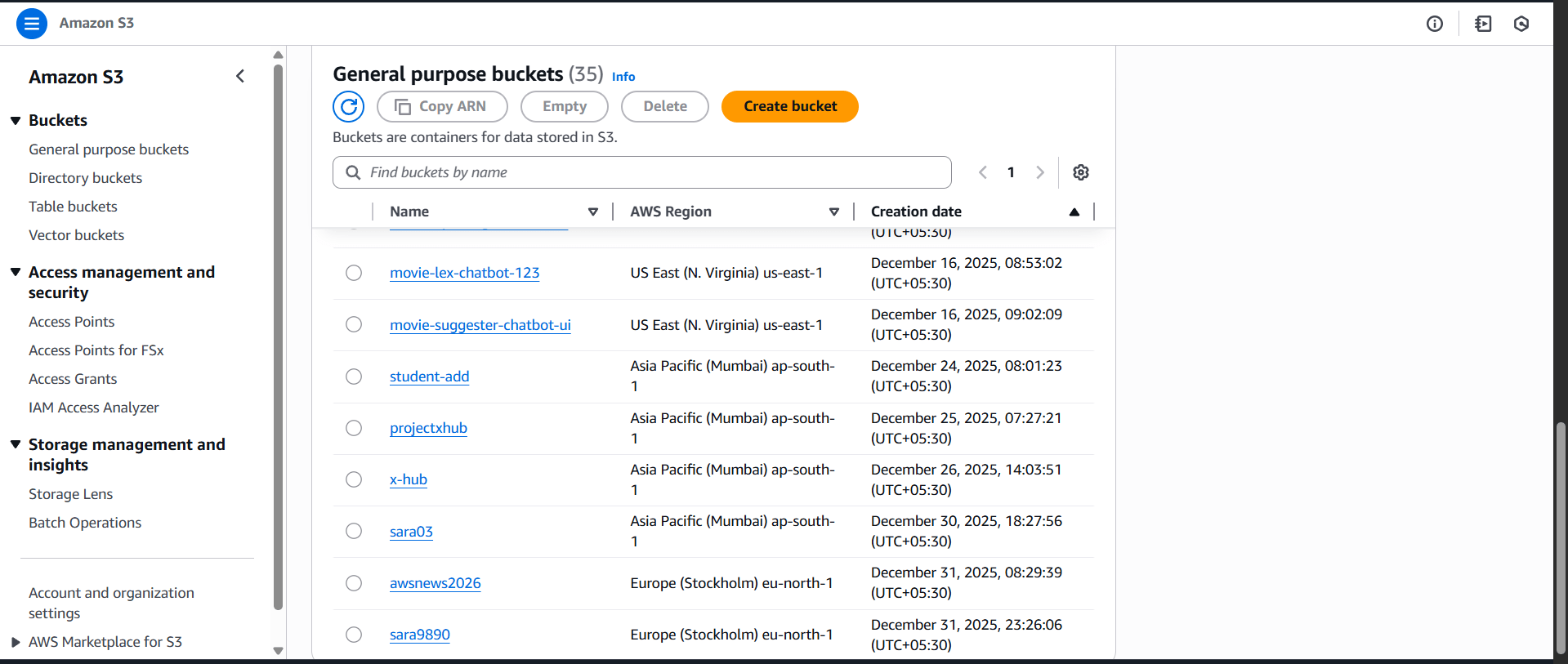

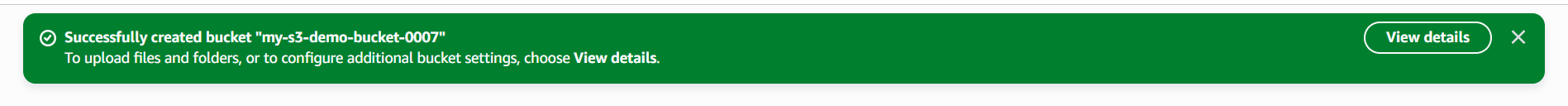

 Bucket is now created.

Hands-On: Amazon S3 Practical

Hands-On: Amazon S3 Practical

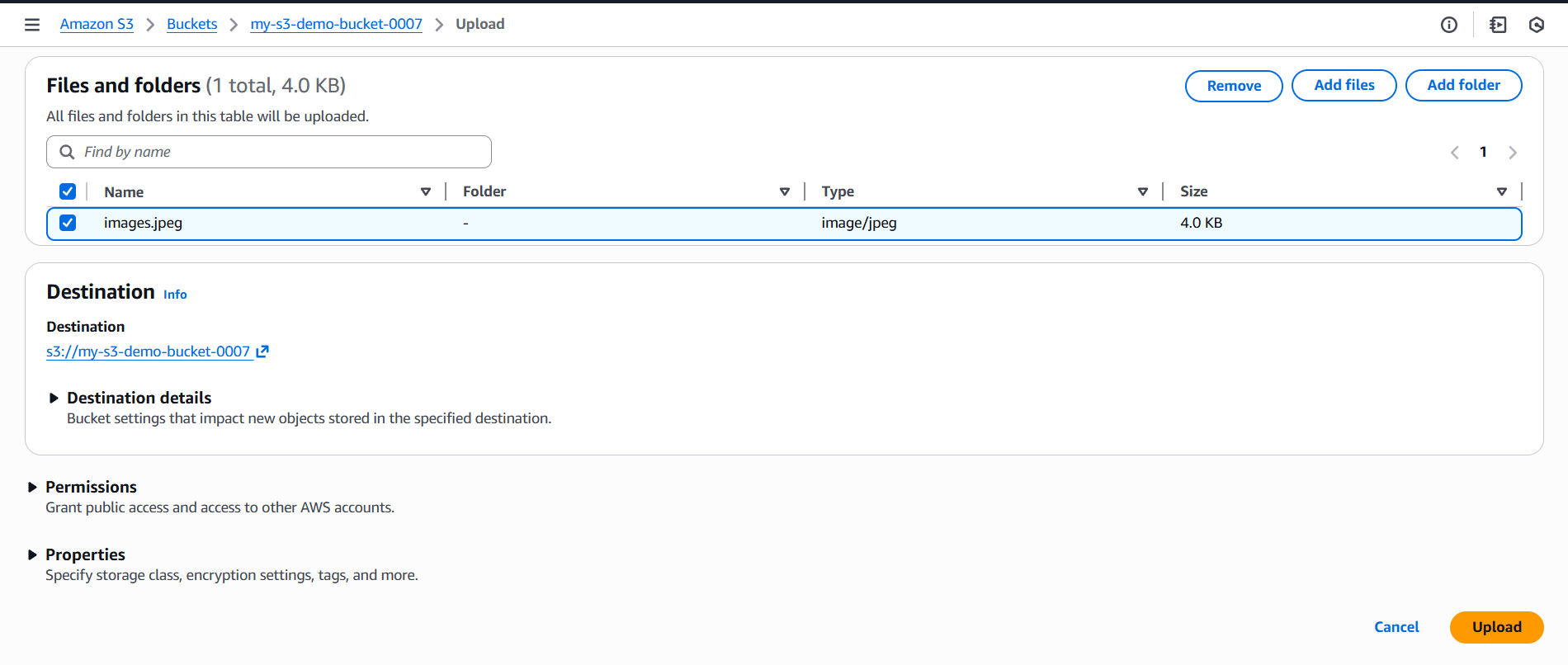

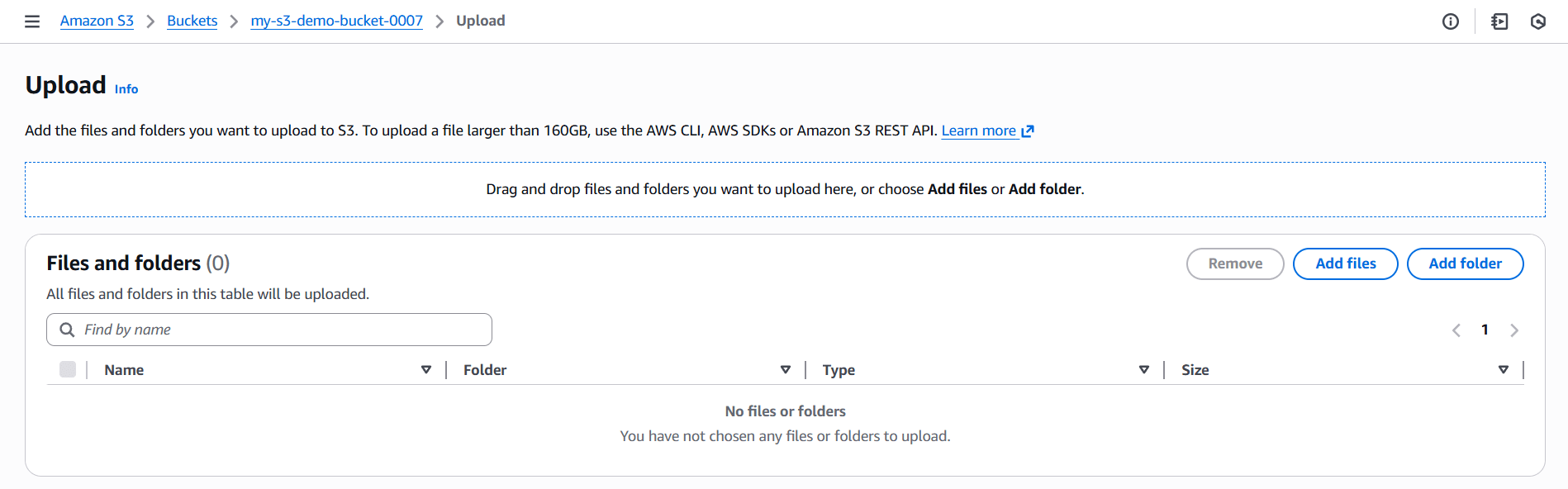

Upload Files to the Bucket

1. Open the created bucket


2. Click Upload


3. Click Add files


4. Select any file (image / text / pdf)


5. Click Upload

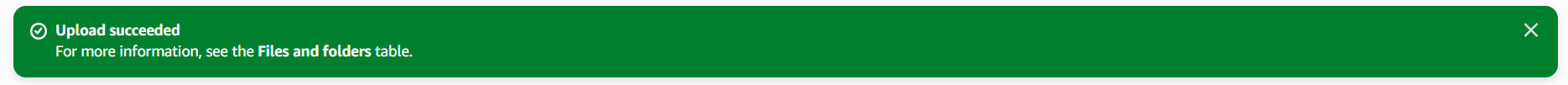

1.  File is now stored as an object in S3.

Hands-On: Amazon S3 Practical

Hands-On: Amazon S3 Practical

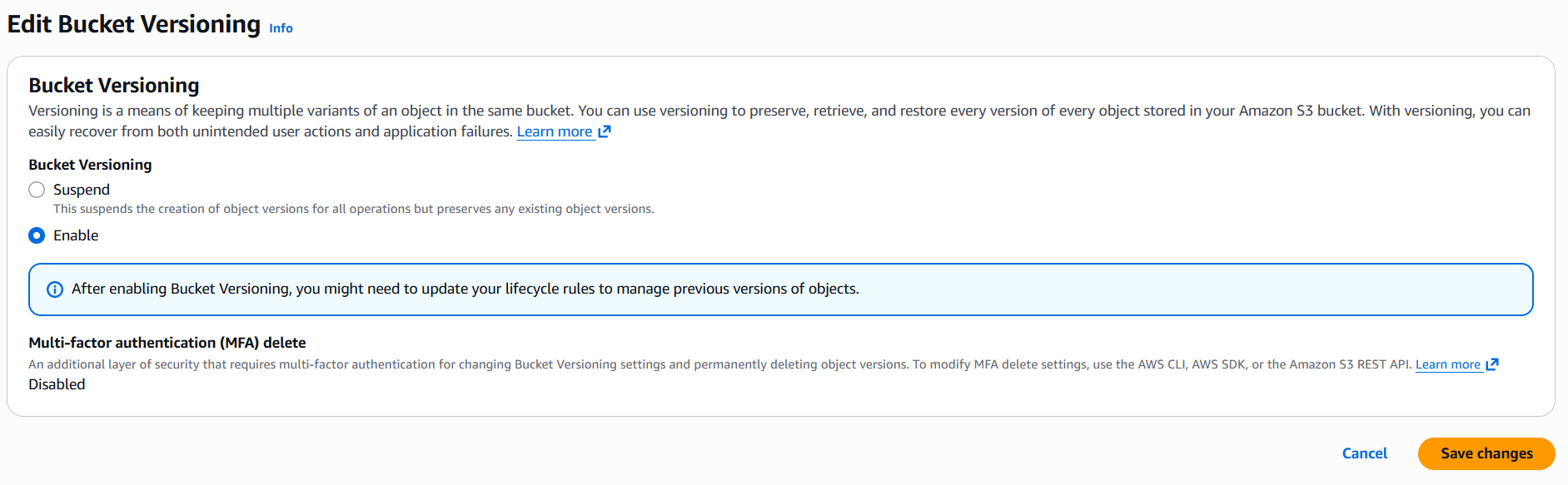

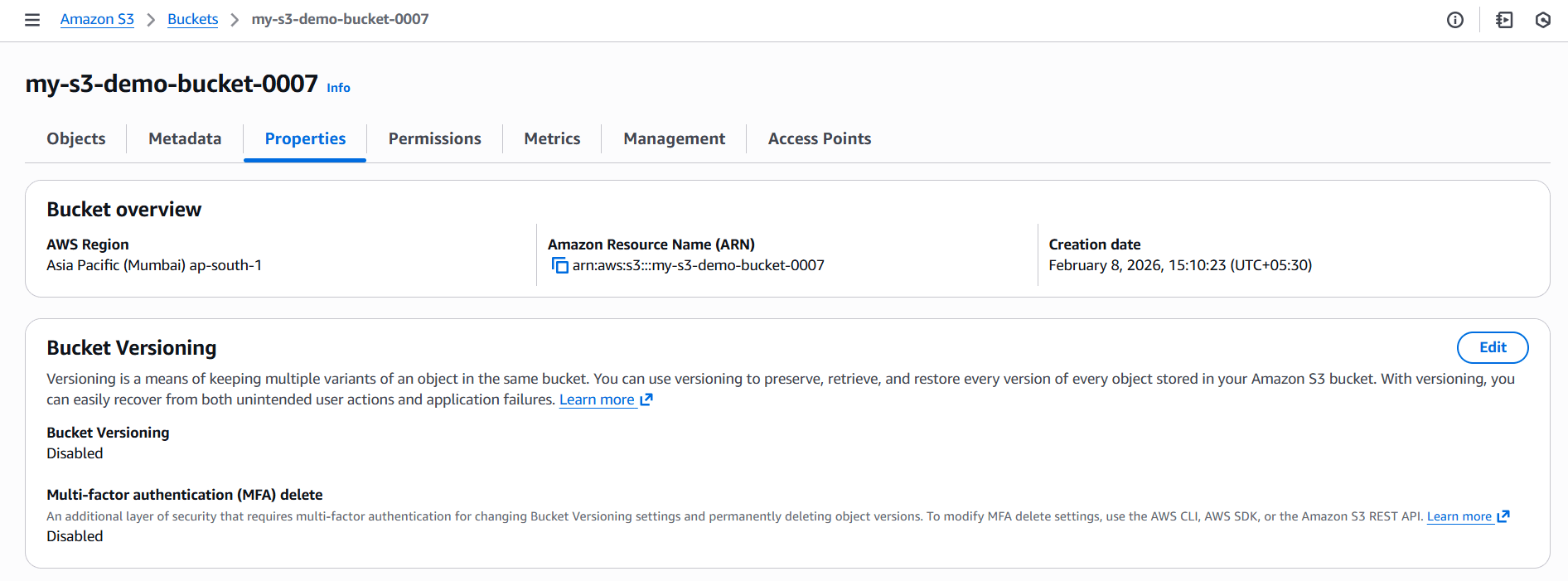

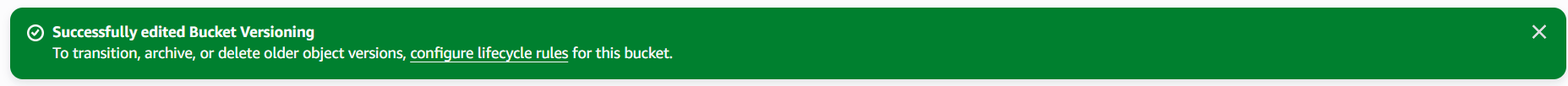

 Step 3: Enable Versioning

Versioning helps keep multiple versions of the same file.

1. Open the bucket


2. Go to Properties


3. Find Bucket Versioning


4. Click Edit


5. Enable Versioning


6. Save changes

 Now, every file update creates a new version

Hands-On: Amazon S3 Practical

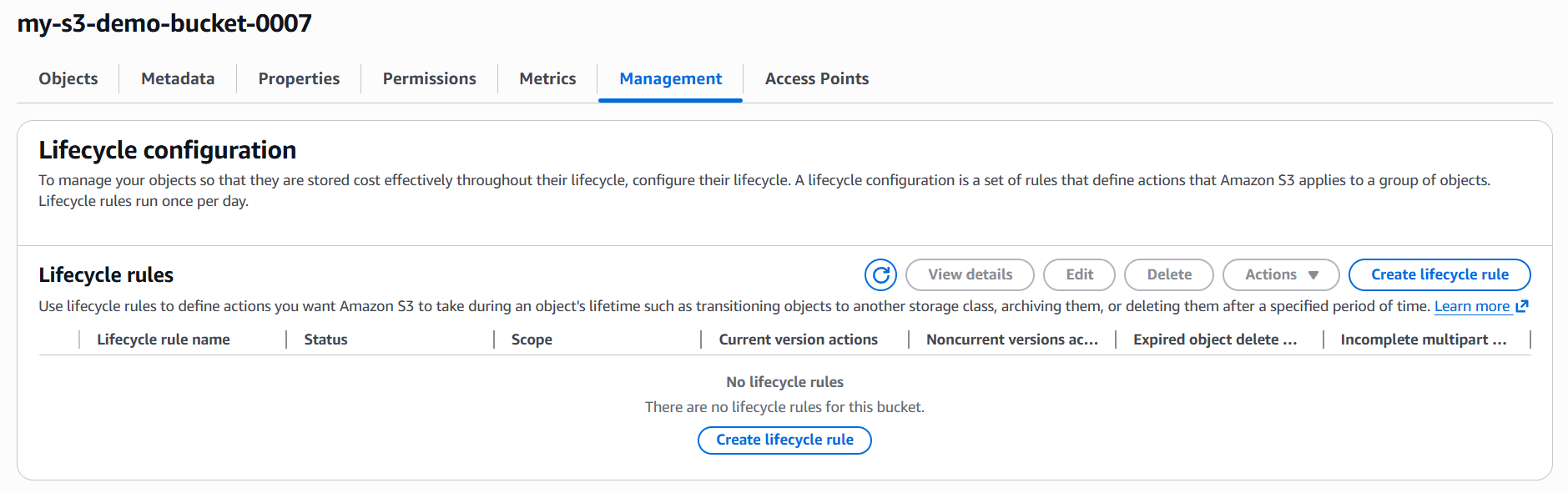

Set a Lifecycle Rule

Lifecycle rules help reduce storage cost automatically.

1. Go to Management tab


2. Click Create lifecycle rule


3. Rule name: move-to-glacier


4Choose Apply to all objects

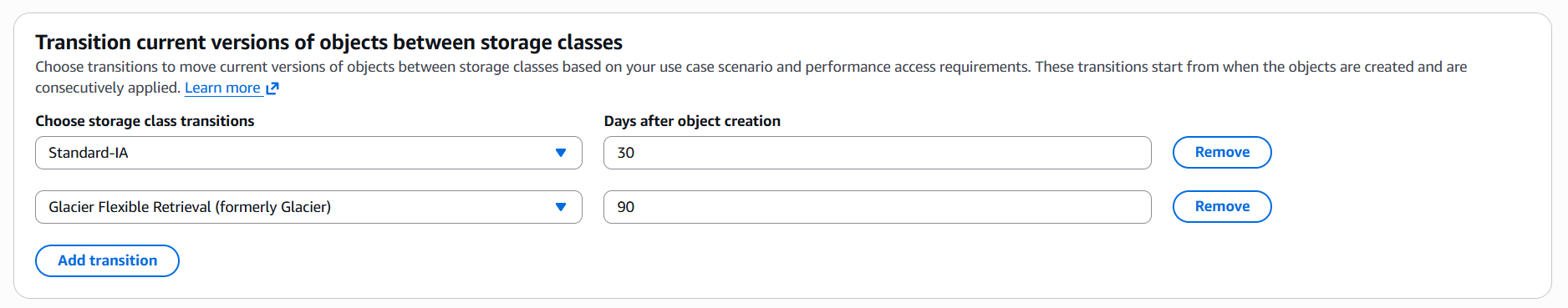

Transition current versions of objects between storage classes click on this

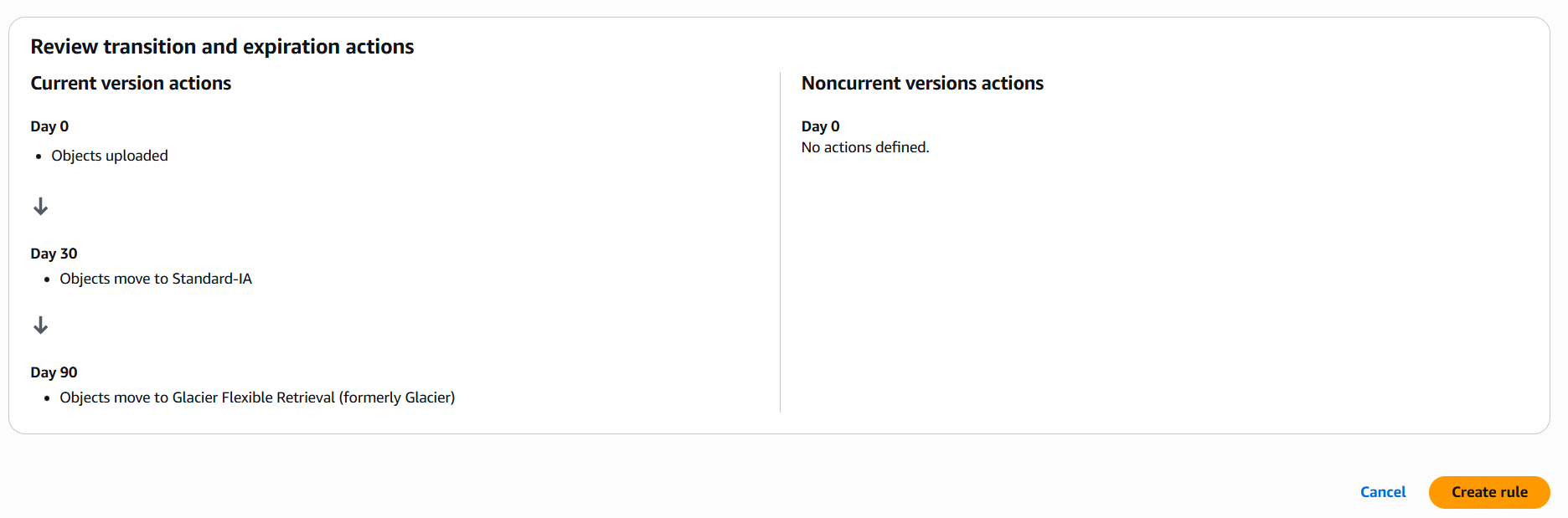

1. Add transition:


   • Move objects to Standard-IA after 30 days


   • Move objects to Glacier after 90 days

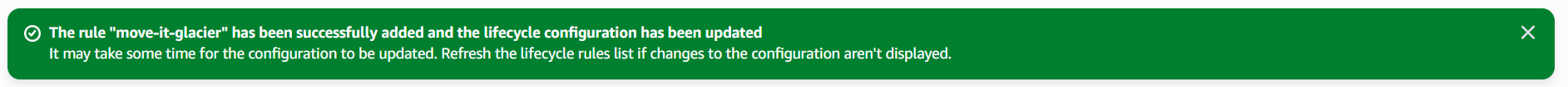

2. Save rule

 S3 will automatically move objects based on age.

Make an Object Public (Safely)

 Best Practice: Do NOT make the whole bucket public.

Steps:

1. Open the bucket



2. Select one object (file)



3. Go to Permissions



4. Edit Object ACL



5. Allow Read access for public



6. Save changes

Now:

• Copy Object URL


• Open in browser


 Only that file is public, bucket remains private.

 Step 6: Use Pre-Signed URL (Secure Sharing)

Pre-signed URLs allow temporary access.

Use cases:

• Secure downloads


• Time-limited sharing


Conceptual steps:

• Generate pre-signed URL


• Set expiry time (e.g., 10 minutes)


 After expiry, link stops working automatically.

 Step 7: Enable Static Website Hosting (Optional but Impressive)

1. Upload index.html file


2. Go to Properties


3. Enable Static website hosting


4. Select:


   • Hosting type: Static website


   • Index document: index.html


5. Save changes

Make Website Public:

• Allow public read access for website objects


• Update bucket policy accordingly


 Access website using S3 website endpoint URL

What is VPC?

A Virtual Private Cloud (VPC) is an isolated network in AWS

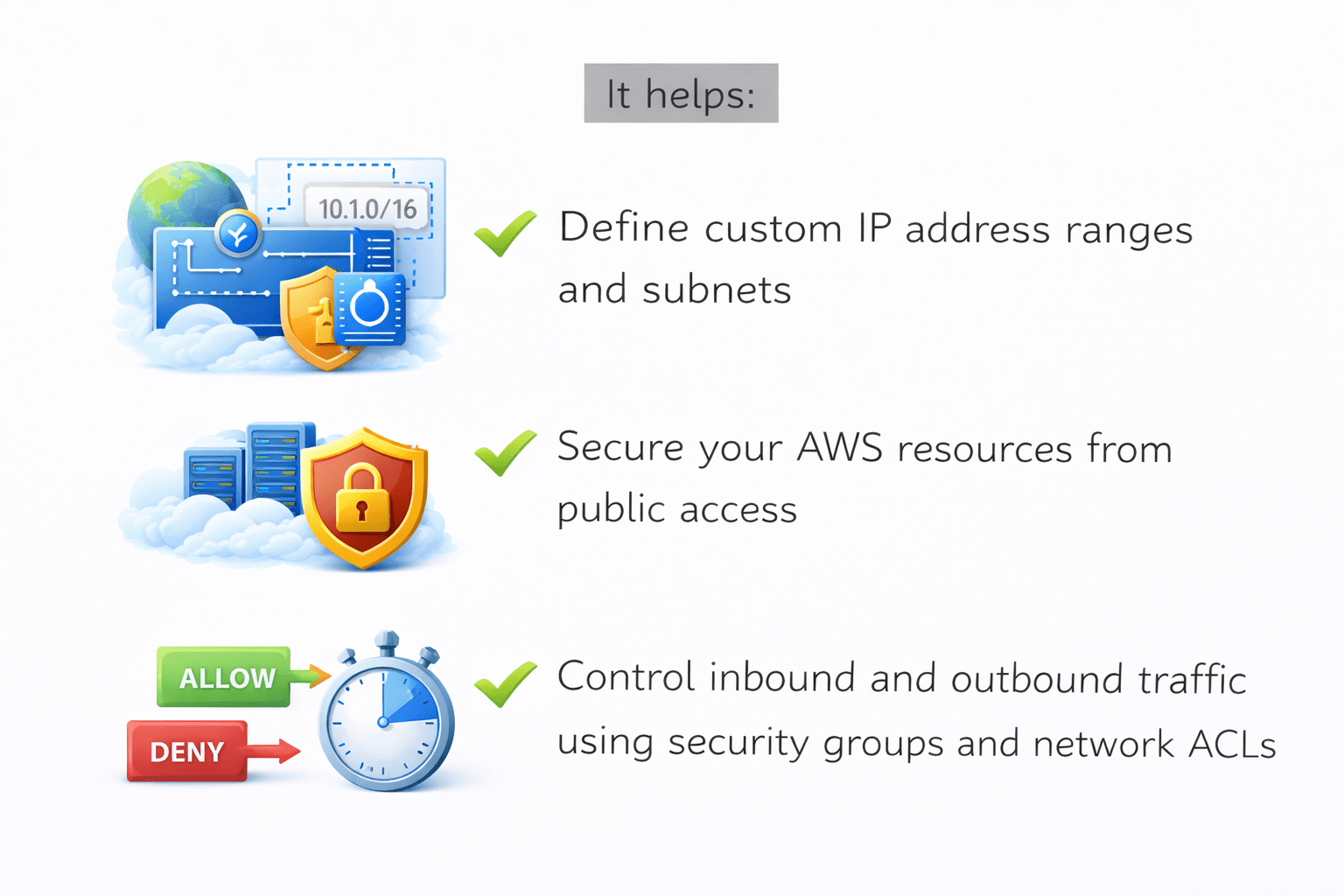

It helps:

Define custom IP address ranges and subnets

Secure your AWS resources from public access

Where you can deploy resources like EC2 instances, databases, and load balancers

Why VPC is Important

Helps design secure cloud architecture

Keeps resources secure and isolated

Allows control over inbound and outbound traffic

CIDR Blocks

CIDR defines the IP address range of a VPC

Example:

10.0.0.0/16

CIDR helps in:

IP planning

Network isolation

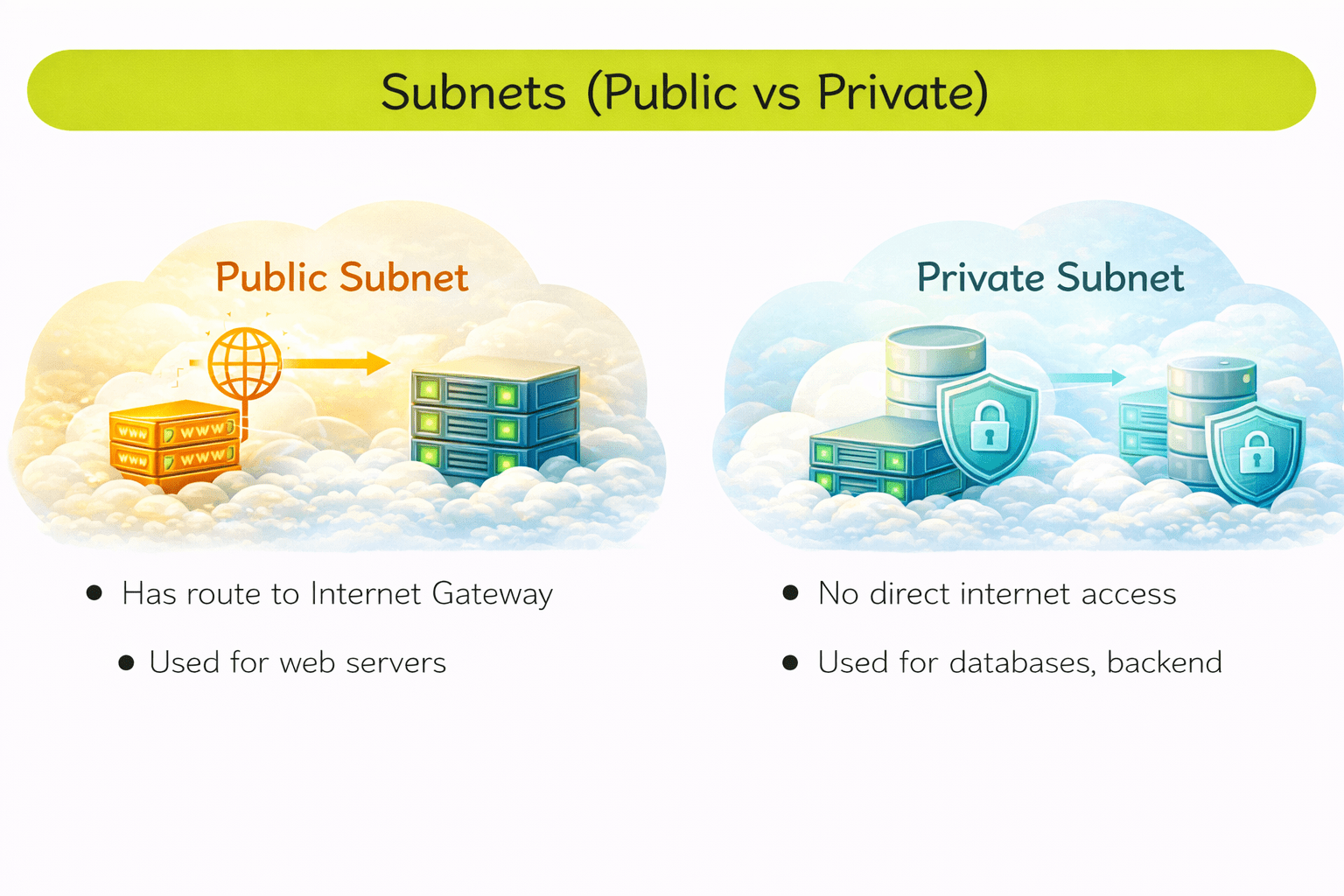

Subnets (Public vs Private)

Has route to Internet Gateway

No direct internet access

Used for web servers

Used for databases, backend

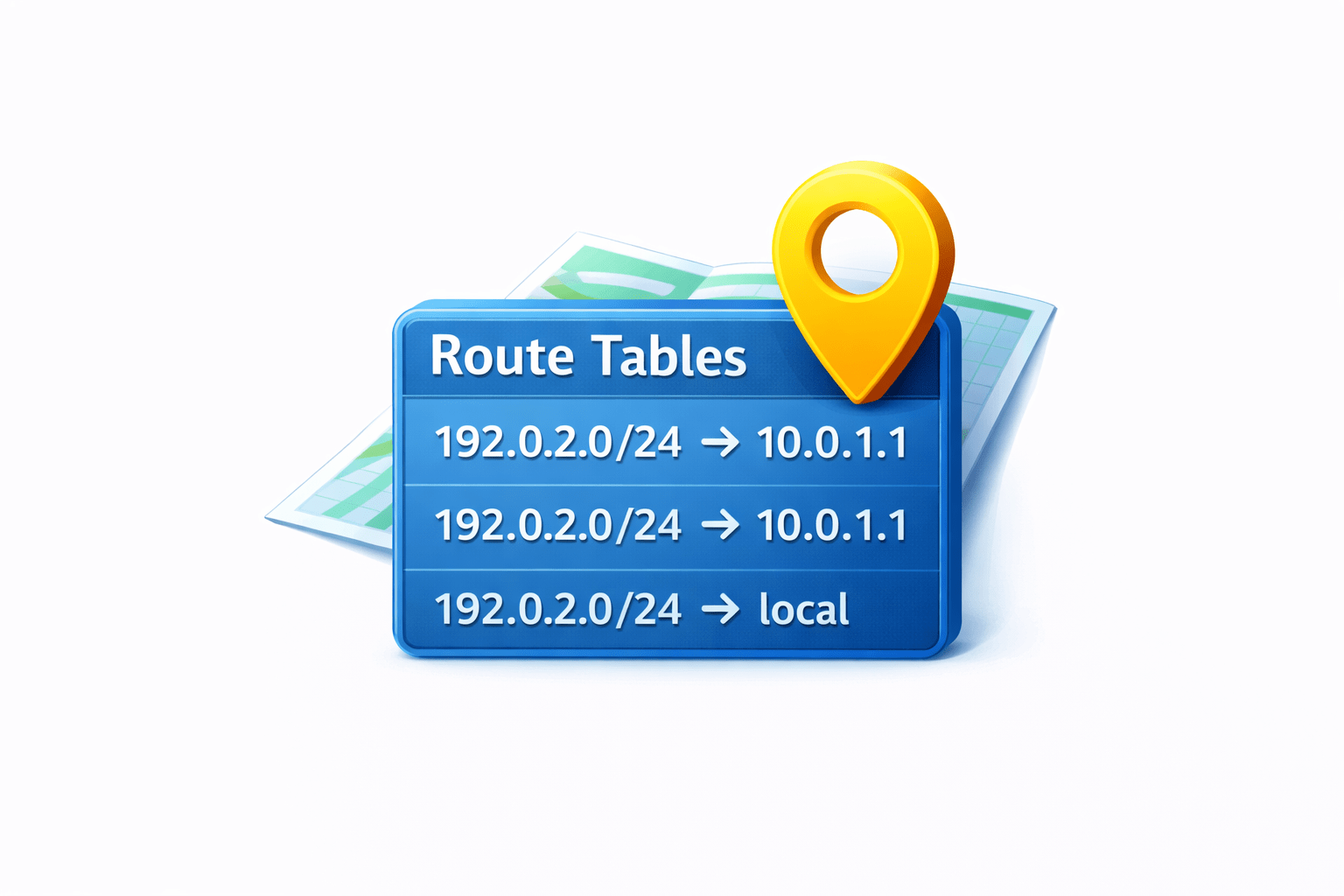

Route Tables & Connectivity

Each subnet must be associated with a route table

Route tables define:

Where network traffic should go

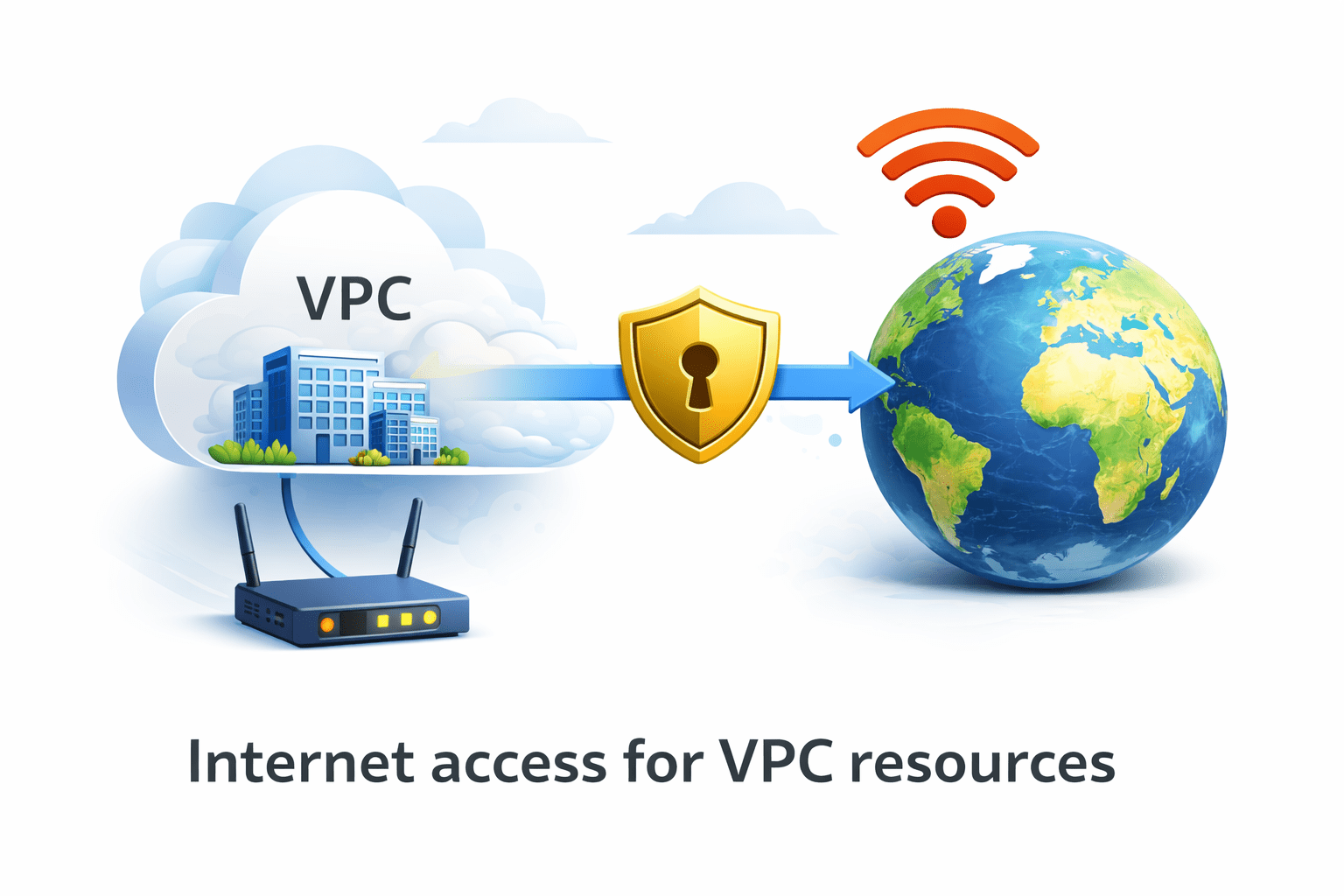

Internet Gateway (IGW)

Required for public subnets

Internet Gateway allows:

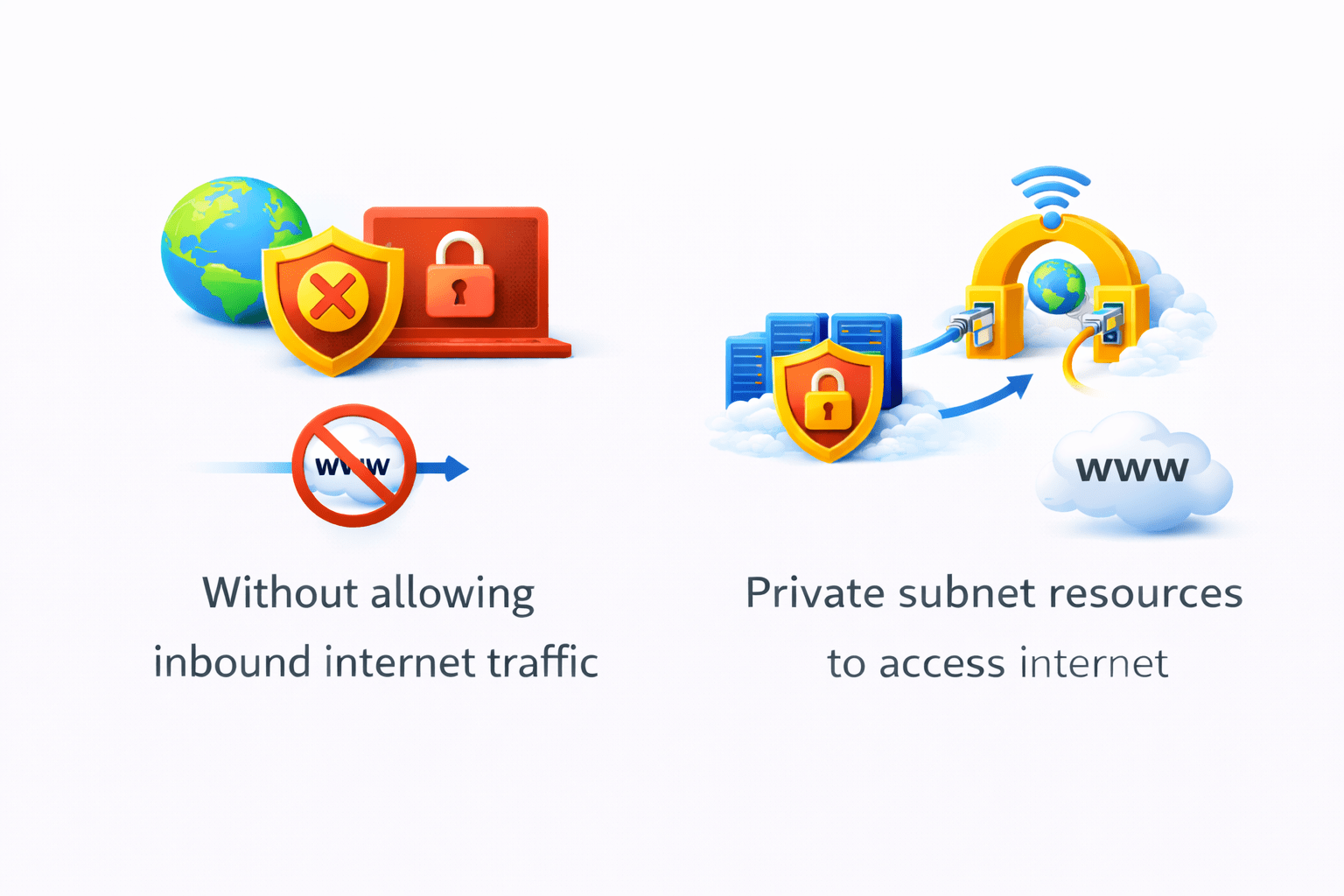

NAT Gateway

NAT Gateway allows:

Private subnet resources to access internet

Without allowing inbound internet traffic

 Used for updates, patching, downloads

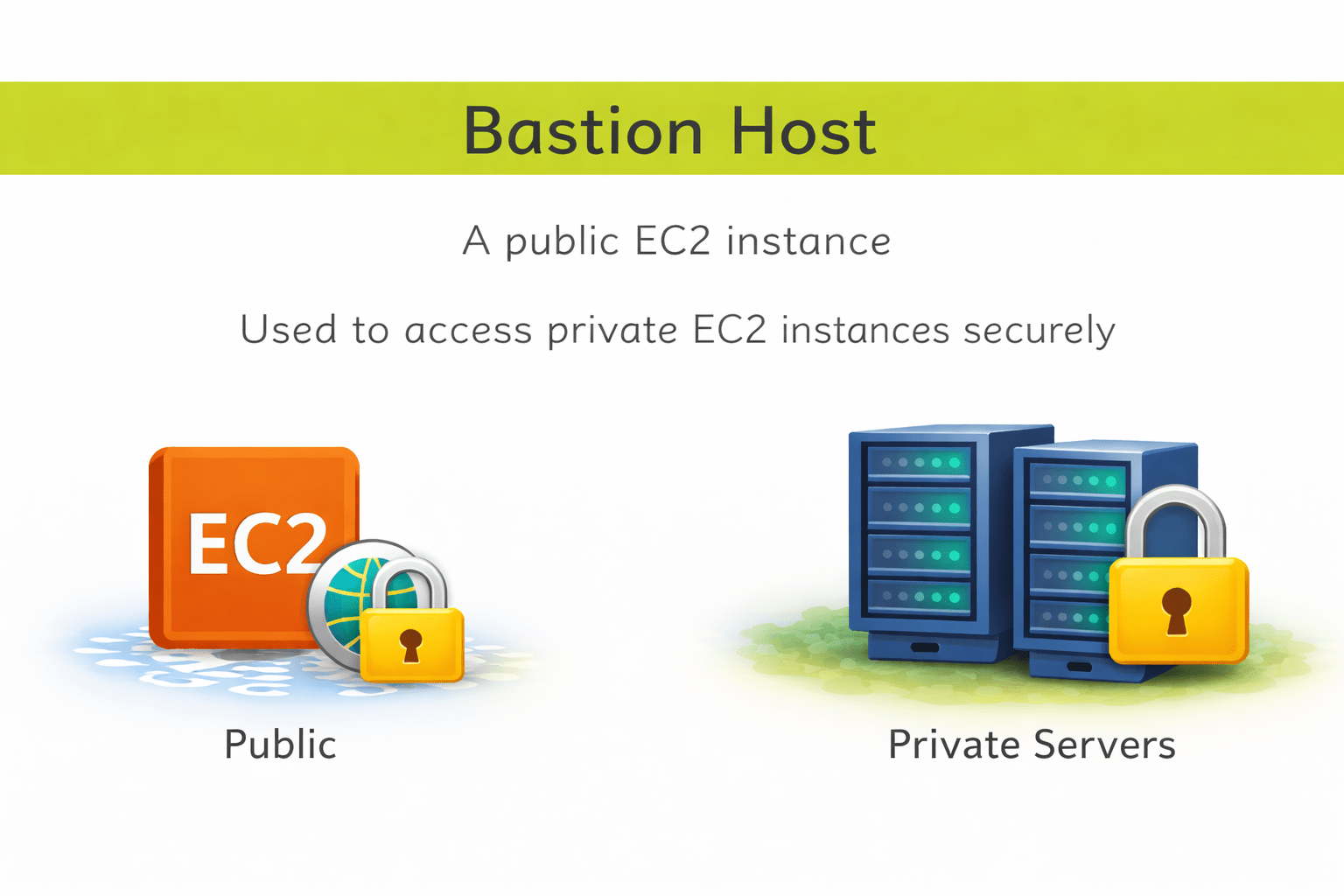

Bastion Host

A public EC2 instance

VPC Peering

VPC Peering allows

Security in VPC

Acts at instance level

Works at subnet level

Security Groups

(Stateful)

Network ACLs

(Stateless)

Allow and deny rules

Only allow rules

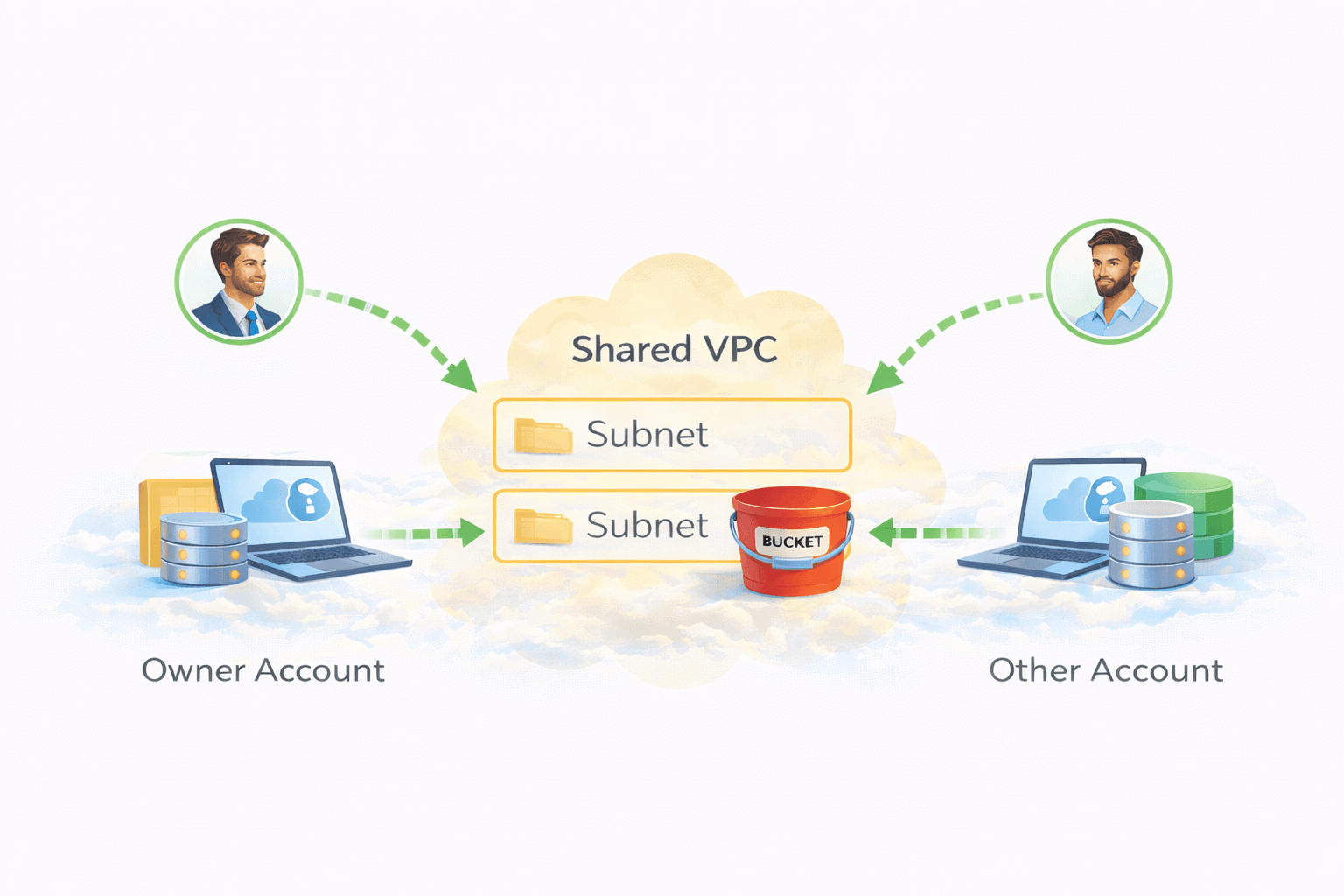

VPC Sharing / Connections

 It helps in:​

VPC Sharing allows multiple AWS accounts to use the same VPC

One account owns the VPC, and other accounts can use its subnets

Managing large multi-account environments

Avoiding creation of multiple VPCs

Centralized network management

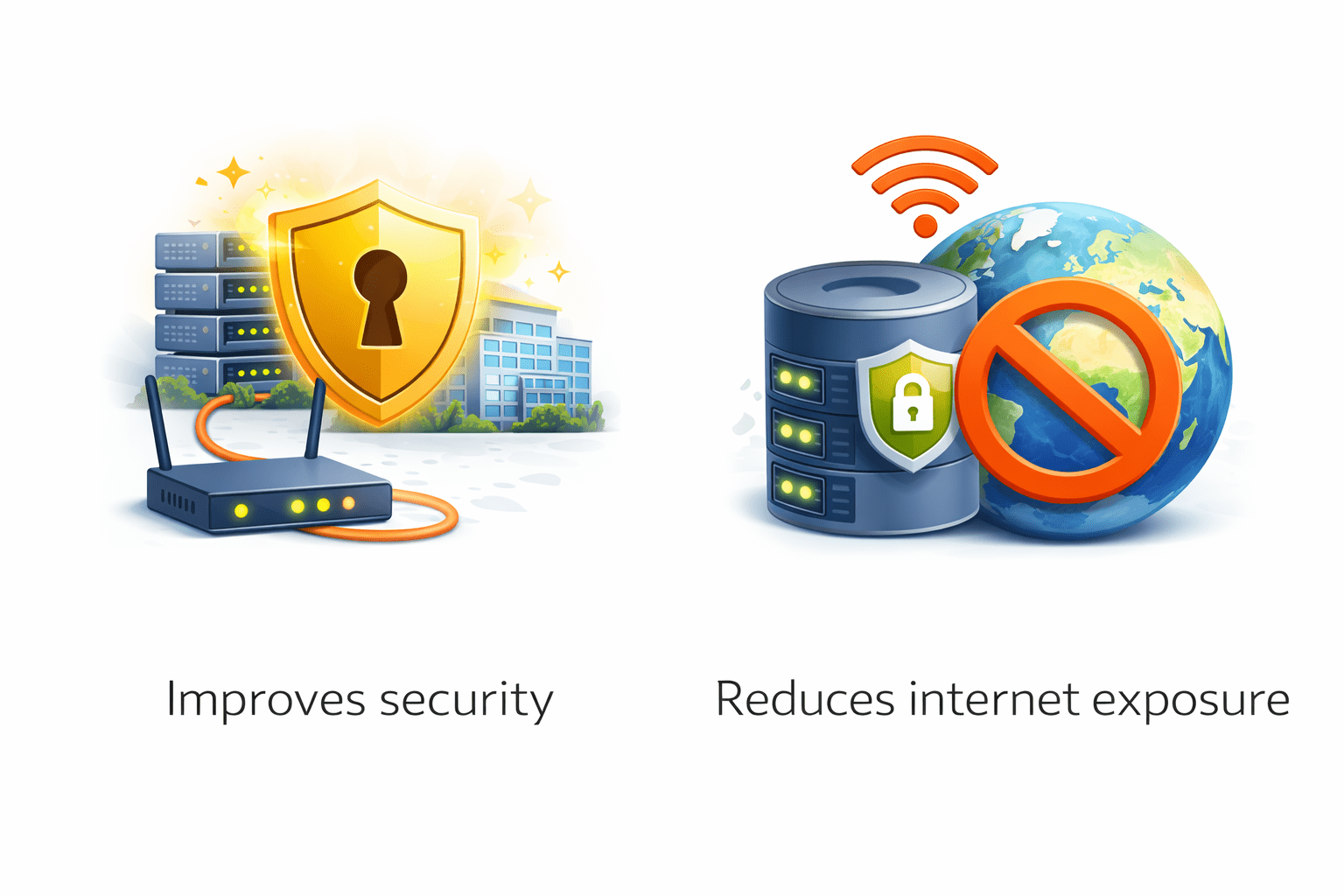

 VPC Endpoints

A VPC Endpoint allows private access to AWS services

 without using the public internet

 Traffic stays inside the AWS network, which:

Hands-On: Amazon VPC Practical

 Step 1: Create a Custom VPC

• Go to VPC → Create VPC


• Name: my-custom-vpc


• CIDR block: 10.0.0.0/16


Create VPC

 Step 2: Create Public & Private Subnets

Public Subnet

• CIDR: 10.0.1.0/24


• Enable auto-assign public IP


Private Subnet

• CIDR: 10.0.2.0/24


• No public IP


 Step 3: Attach Internet Gateway

• Create Internet Gateway


• Attach it to the VPC


 Enables internet access.

Step 4: Configure Route Tables

Public Route Table

• Destination: 0.0.0.0/0


• Target: Internet Gateway


Associate with public subnet.

5: Launch EC2 in Public Subnet

• Launch EC2


• Select public subnet


• Enable public IP


Test:

• SSH or HTTP access works


Confirms internet connectivity.

 Step 6: Test Internet Access

• Connect to EC2


• Run:


ping google.com

Internet access confirmed.

 Step 7: Move EC2 to Private Subnet & Explain NAT

• Launch new EC2 in private subnet


• No public IP


Observation:

• No internet access


Now:

• Create NAT Gateway in public subnet


• Update private route table:


  • 0.0.0.0/0 → NAT Gateway


Private EC2 can now access internet outbound only.

How EC2, S3 & VPC Work Together

EC2, S3, and VPC are never used alone

In real-world AWS architectures

They work together to build secure, scalable applications

• A VPC provides a private network


• Inside the VPC, subnets are created


• EC2 instances are launched inside these subnets

Typical Architecture Flow

VPC → Subnets → EC2

 This ensures:

• Network isolation


• Controlled access


• Better security

How EC2 and S3 Interact

Instead of storing data on EC2 disk:

• EC2 reads data from S3


• EC2 writes data to S3

• EC2 runs applications


• S3 stores data

 S3 acts as central and durable storage, while EC2 focuses only on compute

Common Real-World Use Cases

• 1️ Web Application Hosting

• EC2 runs the web server


• Static content (images, videos) stored in S3


• VPC controls inbound and outbound traffic


 Result: Better performance and scalability.

Common Real-World Use Cases

• 2️ Backup to S3

• EC2 generates important data


• Data is backed up to S3


• S3 provides high durability


 Used for disaster recovery.

Common Real-World Use Cases

• 3️ Log Storage

• EC2 generates system and application logs


• Logs are stored in S3


• Logs can be kept long-term for analysis


 Useful for auditing and troubleshooting.

Conceptual Demo Flow

• Demo 1: EC2 Uploads a File to S3

• EC2 instance runs inside a VPC


• EC2 is given permission using IAM role


• A file is uploaded from EC2 to S3


 Shows EC2 → S3 write access.

Conceptual Demo Flow

• Demo 2: EC2 Serves Content Stored in S3

• Content is stored in S3


• EC2 reads content from S3


• EC2 serves content to users


 Shows EC2 → S3 read access.

Summary

Which platform is mainly used for professional networking and B2B marketing ?

Which platform is mainly used for professional networking and B2B marketing ?
